- MFD.BY:Lightnin
- DATE MFD:1980 approx
- MODEL :880-Q-100
- RATED HP:100
- REDUCTION RATIO:25.89:1 approx.
- OUTPUT RPM:69.5 approx
- OUTPUT SHAFT:5" dia approx.
- MATL'S.CNSTRN:CS output drive shaft. SS extended shaft into vessel
- ORIENTATION:Top entry
- HOW MOUNTED:Bridge/Frame with 4 support legs.
- DRIVEN VIA:Direct coupled, horizontal

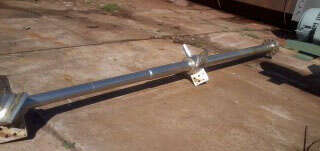

- EXTENDED SHAFT:5" dia upper 12ft, 4.5"dia lower 8ft approx, 20' long overall. SS extended shaft into vessel
- IMPELLOR(S):Dual cast SS 4-blade keyed hubs, 45deg pitch for bolted flat impellor blades [blades fabricated to suit, extra]
- TYPE SEALS:NA
- COMMENTS:Removed from service in good working condition. Refurbishing available if required, extra.
- SHIPPING SIZE-W X H X L:3'W X 6'H X 7'L
- APPROX. WEIGHT-LBS:6125#
- QUANTITY:3
