1269407 - AGITATOR, 2HP, LIGHTNIN, CLAMP ON, A-20SS, 383RPM, 3-1, TOP ENTRY [2]
MFD.BY:Lightnin
DATE MFD:1980 approx.
RATED HP:3
REDUCTION RATIO:3:1 approx.
OUTPUT RPM:383 approx
OUTPUT SHAFT:A20SS
MATL'S.CNSTRN:A20SS
ORIENTATION:T.E. Top entering.
HOW MOUNTED:Clamp on with adjustable incline
DRIVEN VIA:Gear reduction

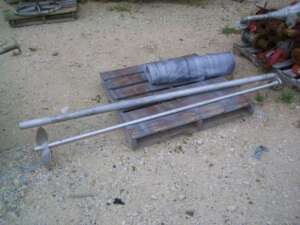

EXTENDED SHAFT:1-1/4” dia. x 72" Lg. [Missing]
IMPELLOR(S):3-blade propellor type impellor, 12"dia. at an angle toward center. [Missing]
TYPE SEALS:NA
PRIOR SERVICE:Sulphuric acid mix tank, 6' x 6'.
COMMENTS:General: Motorized impellor/shaft system designed to mix/suspend/blend solids in liquid solution. Drive unit normally mounted onto a containment vesel while impellor and shaft are immersed in product. Long shafts sometimes require a steady bearing support
