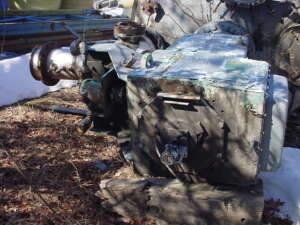

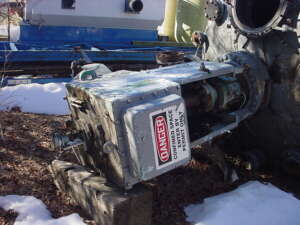

1271357 - AGITATOR, 50HP, LIGHTNIN, 76-S-50, SS, 84RPM, 21.1-1, TOP ENTRY [1]

  • MFD.BY:Lightnin
  • DATE MFD:1990 approx.
  • MODEL :76-S-50
  • RATED HP:50
  • REDUCTION RATIO:21.1:1
  • OUTPUT RPM:84/10 variable
  • OUTPUT SHAFT:4.5"OD approx.
  • MATL'S.CNSTRN:SS
  • ORIENTATION:Top entry
  • HOW MOUNTED:Flange mounted, 20" 150#RFF approx.
  • DRIVEN VIA:Direct coupled
  • EXTENDED SHAFT:4.5" dia x 7' long approx, rigid flanged coupling
  • IMPELLOR(S):2 turbine discs w/5 blades, 8" x 12" each, 42"OD blade set welded to disc & it welded to shaft
  • TYPE SEALS:Double Mech seals.
  • PRIOR SERVICE:Reactor
  • COMMENTS:General: Motorized impellor/shaft system designed to mix/suspend/blend solids in liquid solution. Drive unit normally mounted onto a containment vesel while impellor and shaft are immersed in product. Long shafts sometimes require a steady bearing support
  • SHIPPING SIZE-W X H X L:5'W X 3'H X 6'L
  • APPROX. WEIGHT-LBS:6000#
  • QUANTITY:1
