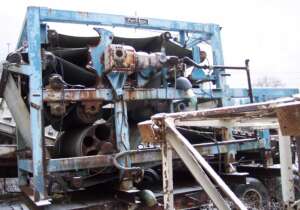

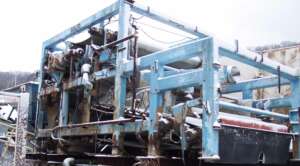

1270787 - BELT PRESS, 2.5 METER WIDE, PARKSON, MAGNUM 1000 [1]

  • MFD.BY:Parkson
  • DATE MFD:1990 approx.
  • TYPE:Belt Press. Dewatering filter,continuous operation. Wet solids are fed onto a travelling cloth media belt which passes under another media belt and sandwiches the product between them. The belts then pass simultaneously, in serpentine fashion, between a
  • SIZE:2.5 Meter
  • MODEL:Magnum 1000
  • MAT'L.-MEDIA BELT:Polypropylene
  • ROLLS-HEAD/TAIL:CS
  • ROLLS-TAKE UP:Nylon coated CS
  • DRIVEN BY:2HP approx.
  • DRIVEN VIA:Gear reducer, Eurodrive variable sped drive
  • PRIOR SVC:Soil Reclamation/sludge. Mfr. rates per meter wide; 120BBL/HR of 3% solids feed, 700-1,000PPH solids, 40-50% solids discharge (dry enough to pass paste filter test)

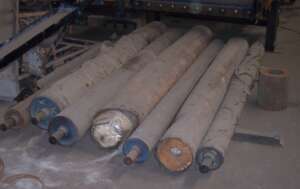

  • COMMENTS:Refurbished prior to shipment, 60 day delivery- extra $40000 est. All contacts PVC, Nylon , or S.S. Includes new belt and spare rolls.
  • SHIPPING SIZE-W X H X L:9'W X 9'H X 16'L
  • APPROX. WEIGHT-LBS:20000#
  • QUANTITY:1
