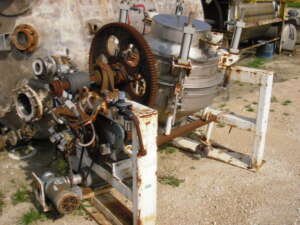

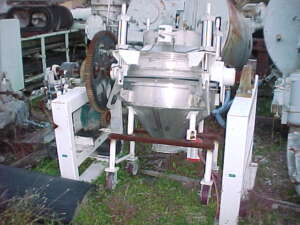

1267647 - BLENDER, DBL.CONE, 5CF, 304SS, 1.5HP, NO BAR [1]
MFD.BY:GEMCO. General Machine Co., NJ.
DATE MFD:1990
TYPE:Cylindrical shell with conical ends opposite one another, rotating around axis perpendicular to line drawn through cone ends. Single system to blend and transport materials with minimum of exposure. Blend chamber is (2)conical halves clamped together with
MODEL:Solids Porta Hopper
CAPACITY:5CF capacity approx.
MAX.PRODUCT DENSITY:106PCF
SIZE:31" dia. x 10" long waist, 12" deep cones approx.
MATL'S.CNSTRN:304SS. All stainless steel contacts.
CONNECTIONS:6" in/out w/pneumatic actuator.
BAR:No
DRIVEN VIA:Gearmotor drive, SM Cyclo Gear,11:1ratio, w/clutch, via 30" bullgear and 6" pinion. Approx. 31 RPM.
PRIOR SERVICE:Double cone Porta Hopper type blender.
COMMENTS:Packaged on tubular steel stands with controls, actuators, limit switches, jog/positioning drive. (1½HP, 3/60/208-230-460V w/SM Cyclo Gear,11:1ratio, w/clutch) Cone closures via (4) pneumatic cylinders, Mosier mdl. DAQ 353 B 1, 2½"dia X 6½" stroke, 150#
