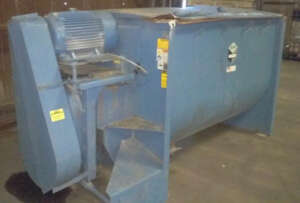

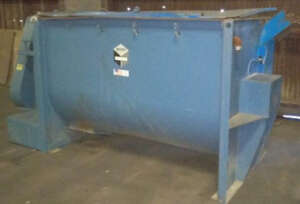

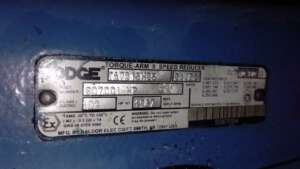

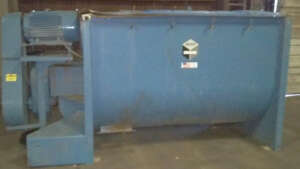

MFD.BY: Scott DATE MFD: 2011 TYPE: Paddle/Plow mixer. Horizontal troughed. MODEL: SPM487 CAPACITY: 80CF working, [100CF over blade tips] 114CF total approx. TROUGH SIZE: 48” wide X 84” long X 54” deep. MATL'S. CONSTRN: CS 1/4" ends, 3/8" trough. TOP COVER: Yes. 12Ga, bolt down. JACKET-PRESSURE/TEMP: NA BLADE(S): 8 @ 18” [tbc] BLADE SUPPORT BAR(S): CS MAIN SHAFT DIA: 6" inside trough, 3-15/16" drive end brg, 3-7/16"idle end brg. 3 ring air purged packing gland seals. BEARINGS: Outboard bearings with grease lubricated/pressurized shaft seals. DRIVEN BY: 25HP 3/60/230-460v 1800rpm. TEFC DRIVEN VIA: Dodge shaft mounted reducer, V belts/Pulley, 23rpm output shaft speed PRIOR SERVICE: Agricultural. COMMENTS: Liquid injection manifold upper trough side, 1-1/4" w/4 nozzles. Trough end plates support, bolted to trough ends..n8” flanged center bottom discharge at 7 o’clock position.nSpray pipe runs length of unit. SHIPPING SIZE-W X H X L: 4'6''W X 6'H X 11'L APPROX. WEIGHT-LBS: 4000# QUANTITY: 1
