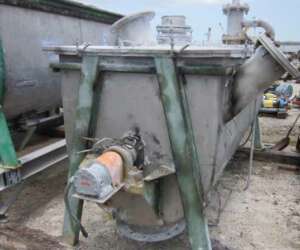

- MFD.BY:Strong Scott
- DATE MFD:1990 approx

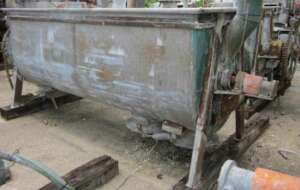

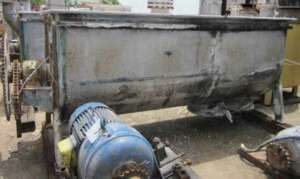

- TYPE:Double ribbon
- MODEL:IMXS-111
- CAPACITY:111CF
- TROUGH SIZE:3'11" wide x 4' 5"deep x 10'3"long inside trough approx.
- MATL'S. CONSTRN:304SS

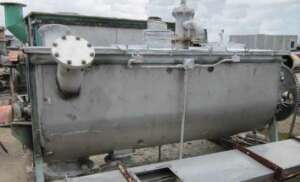

- TOP COVER:Yes.
- JACKET-PRESSURE/TEMP:NA

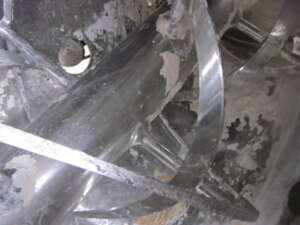

- BLADE(S):Inner: 3" x 1/2" Outer: 2" x 3/8" wapprox.
- BLADE SUPPORT BAR(S):2” dia. Approx.
- MAIN SHAFT DIA:4" approx.
- BEARINGS:Outboard pedestal.

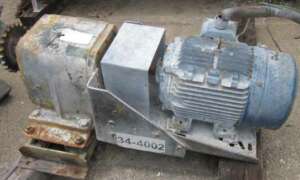

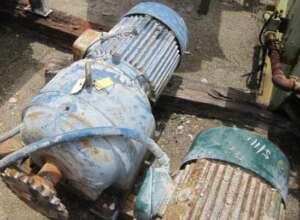

- DRIVEN BY:30HP 3/60/220-440V 2speed.

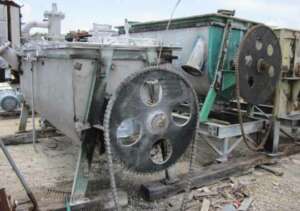

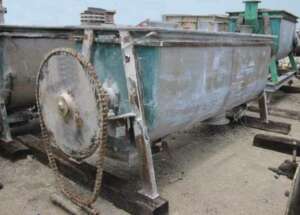

- DRIVEN VIA:Gear reducer, in-line, w/chain drive from motor. Munted in line over end of trough. 11.5-23rpm. Shaft.
- PRIOR SERVICE:Plastics related Chemicals
- COMMENTS:On 4 legs.
- SHIPPING SIZE-W X H X L:4'W X 6'H X 13'6''L
- APPROX. WEIGHT-LBS:5000#
- QUANTITY:4
