- MFD.BY:JH Day or similar
- DATE MFD:1995 approx.

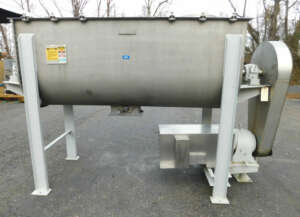

- TYPE:Double ribbon
- CAPACITY:70CF total, 50-60CF working
- TROUGH SIZE:3'wide x 3'4''deep x 8'long inside trough. Bolted rear end plate.
- MATL'S. CONSTRN:San304SS
- TOP COVER:Yes. 3 sections. Both ends 3'long, hinged with quick open swing clamp closures.
- JACKET-PRESSURE/TEMP:NA

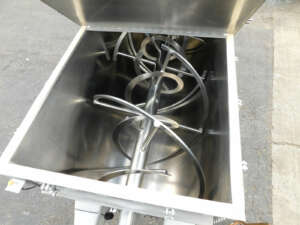

- BLADE(S):Inner: 2" x 3/8" Outer: 1-1/2" x 1/2" approx.
- BLADE SUPPORT BAR(S):1” dia. Approx.
- MAIN SHAFT DIA:2-1/2"
- BEARINGS:Outboard pedestal ball or roller bearings. Shaft seals
- DRIVEN BY:20HP 3/60/460v TEFC
- DRIVEN VIA:In line Reducer, Chain & Sprocket. W/Guards.
- PRIOR SERVICE:Food
- COMMENTS:On 4 CS channel legs, 3' ground clearance. Sanitary service, all internal welds ground and polished.
- SHIPPING SIZE-W X H X L:3'6''W X 6'H X 10'L
- APPROX. WEIGHT-LBS:3500#
- QUANTITY:1
