- MFD.BY:Sturtevant
- DATE MFD:Rebuilt 1994 & unused since.

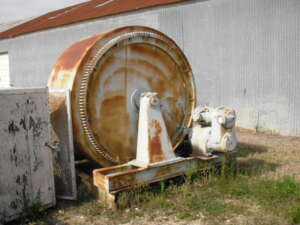

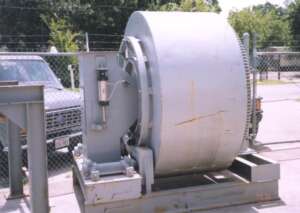

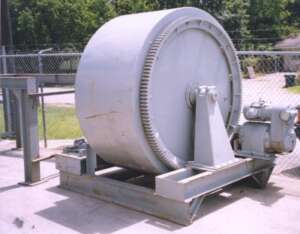

- TYPE:Rotary, batch, dustless blender, with internal lifters/buckets. Self cleaning action. Horizontal.
- MODEL:#8
- CAPACITY: 60-100F CWorking. 5000#. Total 128CFpprox
- MAX. PRODUCT DENSITY:50PCF min, approx.
- SIZE:40” wide X 84” dia. shell.
- MATL'S.CNSTRN:CS Carbon steel.
- CONNECTIONS:14" Square In/Out approx.
- DRIVEN BY:7.5HP Reeves v/speed drive. Max. approx. 20HP.
- PRIOR SERVICE: Refurbished and unused since, weathered paint. Needs repaint and minor refurbishing.
- COMMENTS:Outboard bearings. Trunnion feed. On base with trunnions & rollers.nUsed in dry or semi-dry applications. Blend cycle approx. 2-5 mins.
- SHIPPING SIZE-W X H X L:8'6''W X 8'6''H X 10'L
- APPROX. WEIGHT-LBS:5000#
