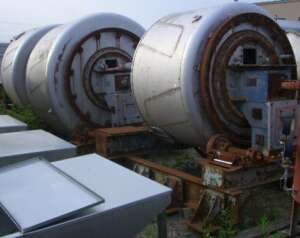

1269376 - BLENDER, ROTARY, 108CF, STURTEVANT, 304SS, 20HP [1]

  • MFD.BY:Sturtevant
  • DATE MFD:1967

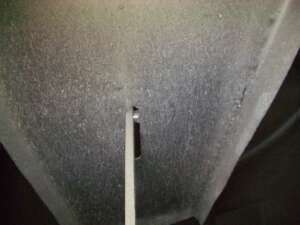

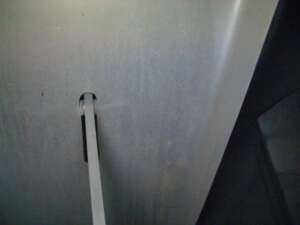

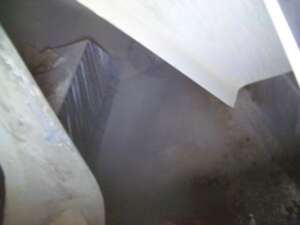

  • TYPE:Rotary, batch, dustless blender, with internal lifters/buckets. Self cleaning action. Horizontal.
  • CAPACITY:Working approx. 50CF. Total 108CF 5000#.
  • MAX. PRODUCT DENSITY:50PCF. min, approx. capacity over 100PCF
  • SIZE:4'w x 6'dia. shell. Approx.
  • MATL'S.CNSTRN:304SS
  • CONNECTIONS:14" Square In/Out approx.
  • DRIVEN BY:20HP 3/60/550V
  • COMMENTS:Outboard bearings. Trunnion feed. On base with trunnions & rollers.nUsed in dry or semi-dry applications. Blend cycle approx. 2-5 mins.nNew drive, bearings, controls.
  • SHIPPING SIZE-W X H X L:8'6''W X 8'6''H X 10'L
  • APPROX. WEIGHT-LBS:5000#
