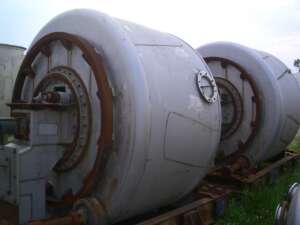

1269377 - BLENDER, ROTARY, 219CF, STURTEVANT, 304SS, 30HP [2]

  • MFD.BY:Sturtevant
  • DATE MFD:1967
  • TYPE:Rotary, batch, dustless blender, with internal lifters/buckets. Self cleaning action. Horizontal.
  • CAPACITY:75-100CF, working capacity 3-5000#. Total 219CF. 10000#.
  • MAX. PRODUCT DENSITY:50PCF min, approx. capacity over 100PCF
  • SIZE:4'6"w x 8'dia. shell. Approx.
  • MATL'S.CNSTRN:304SS
  • CONNECTIONS:14" Square In/Out approx.
  • DRIVEN BY:30HP 3/60/550V
  • COMMENTS:Outboard bearings. Trunnion feed. On base with trunnions & rollers.nUsed in dry or semi-dry applications. Blend cycle approx. 2-5 mins.nNew drive, bearings, controls.
  • SHIPPING SIZE-W X H X L:8'6''W X 8'6''H X 10'L
  • APPROX. WEIGHT-LBS:6000#
