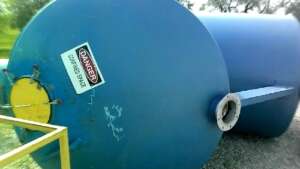

1271297 - BLENDER, TWIN SHELL, 400CF, CS, 20HP, NO BAR [1]

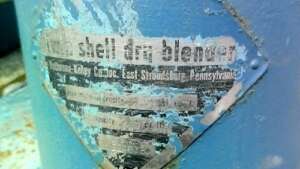

  • MFD.BY:Patterson Kelley
  • TYPE:Two cylindrical shells of equal length joined at 45° to one another at one end forming a "Vee". Rotation is around the horizontal axis, causing material to combine at the Vee's fulcrum when at the bottom of a revolution and dividing it into each "leg" as
  • CAPACITY:400CF
  • MAX.PRODUCT DENSITY:50PCF
  • SIZE:7ft dia shells approx
  • MATL'S.CNSTRN:CS
  • CONNECTIONS:(2) 18” manways w/quick release covers. 2 @ 10" charge nozzles, one in each leg. 12” bottom outlet
  • DRIVEN BY:20HP 3/60/220-440V TEFC, 1760 RPM w/brake, approx.
  • BAR:NA
  • PRIOR SERVICE:Plastics [tbc]
  • COMMENTS:Steel support frames, approx 12ft deep x 6ft wide 11ft 2iin high. 6ft dia bullgear approx. Installed 7'deep x 17' side to side x 13'8"high.
  • SHIPPING SIZE-W X H X L:7'W X 10'H X 16'L
  • APPROX. WEIGHT-LBS:20000#
  • QUANTITY:1
