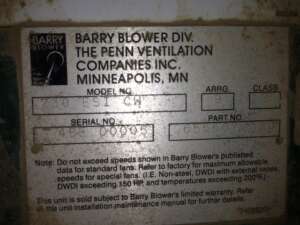

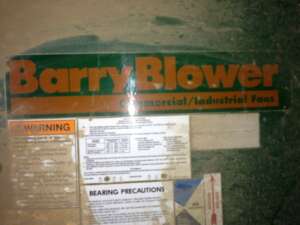

- MFD.BY:Barry Blower
- DATE MFD:1997
- TYPE:Vane Axial Vertical in line.
- MODEL:730ESI CW Arr 9
- MATL'S. CNSTRN:CS Vinyl PVC coated housing, 304SS shaft, Aluminum Fan & Hub.
- INLET-SIZE/POSITION:89"dia app. vertical bottom inlet. 53.1SF area.
- DISCHARGE-SIZE/POSITION:89"dia app. vertical top discharge. [Up Blast]
- MAXIMUM CFM:120000CFM @ 666 rpm @ 7"SP. With 200HP [OEM 40000 - 155000CFM]
- MAXIMUM PRESS:7"SP @ 120000CFM @ 666 rpm. With 200HP [OEM 0.25"SP - 7"SP]
- NOMINAL CFM:90000CFM @ 5"SP @ 543RPM with 100HP
- DRIVEN BY:200HP 3/60/460V @ 1150 rpm. Fr.445T. [OEM 3HP- 200HP]
- DRIVEN VIA:V-belts.
- PRIOR SERVICE:UNUSED

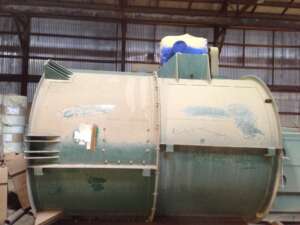

- COMMENTS:Vertical mount. 2 sets of double spherical roller bearings. Body side mounted drive motor, V-belts, guards. Body approx 8ft dia. X 16ft high, bottom flanged support.
- SHIPPING SIZE-W X H X L:8'W X 8'H X 16'L
- APPROX. WEIGHT-LBS:7365#
- QUANTITY:4
