- MFD.BY:Spencer Turbine Co., Windsor, CT.
- DATE MFD:1988 approx.

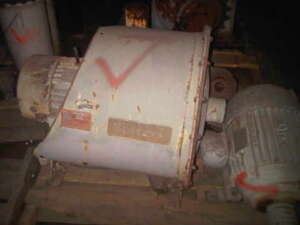

- TYPE:Centrifugal fan. Horizontal, multi-stage centrifugal air blower.
- MODEL:55X07
- MATL'S. CNSTRN:CS
- INLET-SIZE/POSITION:4" dia
- DISCHARGE-SIZE/POSITION:4" dia
- MAXIMUM CFM:250
- MAXIMUM PRESS:5.5" Hg.
- NOMINAL CFM:250
- DRIVEN BY:7.5HP motor, 3/60/480V, 3500 rpm
- DRIVEN VIA:Direct coupled
- PRIOR SERVICE:Vacuum blower.
- COMMENTS:Skid mounted.nIncludes inlet filter: 36" dia. x 6' s-s + 24" cone + 24" top hood, on 4 @ 6' high legs. Overall 36" dia. x 13'6" high. Connections: 6" x 11" inlet, 24" air outlet. Cone bottom solids discharge 8". Weight approx. 1162#nOriginally with
- SHIPPING SIZE-W X H X L:3'W X 3'H X 4'L
- APPROX. WEIGHT-LBS:500#
- QUANTITY:1
