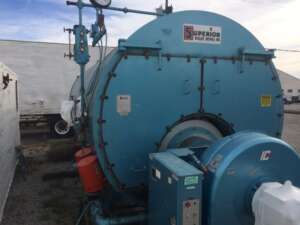

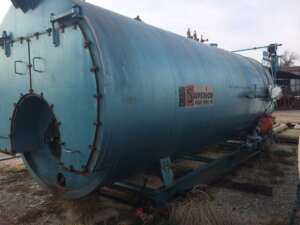

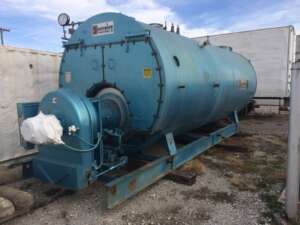

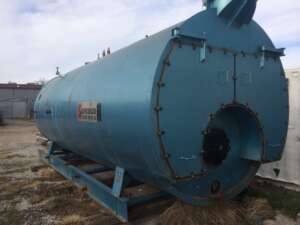

1271558 - BOILER, 17250PPH, 500HP, 150#, SUPERIOR, GAS [1]

  • MFD.BY:Superior
  • DATE MFD:2002
  • TYPE:Firetube. Packaged. Steam generating boiler.
  • STEAM PRODUCTION-PPH:17250
  • SIZE-HP:500
  • STEAM PRESSURE:150 psig operating when supplied w/212°F feedwater.
  • STEAM TEMPERATURE:350 deg F approx.
  • SUPERHEATER:NA
  • ECONOMIZER:NA
  • BURNER:Industrial Combustion DG-210P. 2.996-21MM BTU/HR firing rate.

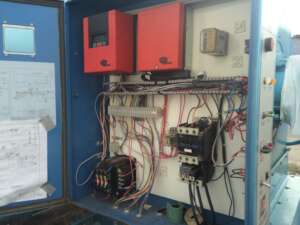

  • COMBUSTION BLOWER:25HP 3/60/460v. Controls 1/60/120v
  • TUBES:2519 SF area
  • CERTIFICATION:ASME NB
  • AUXILIARIES:Valve trim available- LWCO, drain valve, water guage, water column blowdown valve, vent and drain valves, safety valves,150#, Steam pressure guage, plus other valve trim and regulators.
  • PRIOR SERVICE:Plant steam package.
  • COMMENTS:Test Fired 2015. Ready to go.
  • SHIPPING SIZE-W X H X L:6'W X 8'H X 20'L
  • APPROX. WEIGHT-LBS:20000#
  • QUANTITY:1
