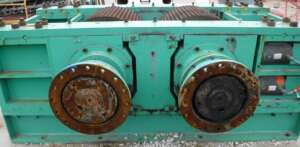

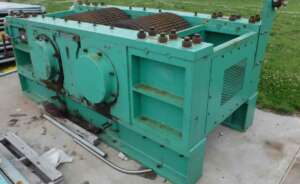

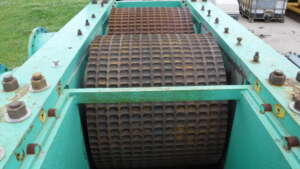

ROLL TYPE:Single piece machined sleeve shrunk fit over hub/core. Mill shaft type supported by bearings on both sides of each roll.
MODEL:230A [Similar design to KR Komarek DH500]
ROLL SIZE:32” OD X 28"wide face approx.
MATL'S. CNSTRN-ROLLS:CS. Auto lubrication to seals and bearings.
MATL'S. CNSTRN-BODY:CS

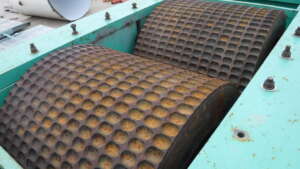

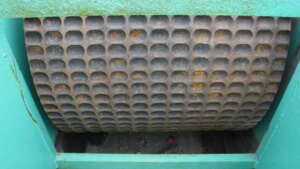

BRIQUETTES:2''long x 1-3/8''wide x 5/8'' deep, oval/pillow shaped. 13 pockets across face when new

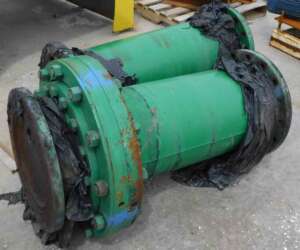

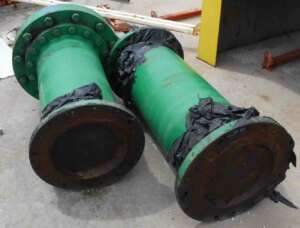

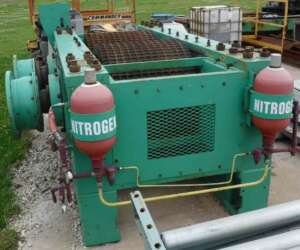

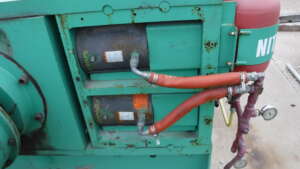

ROLL CLOSURE:300 Ton approx.. Dual cylinders each end of shaft, hydraulic accumulator per pair, 700# reduced pressure from 1750# Electro-Hydraulic power pack

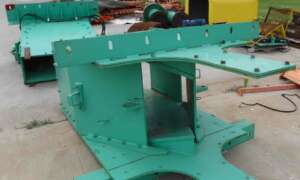

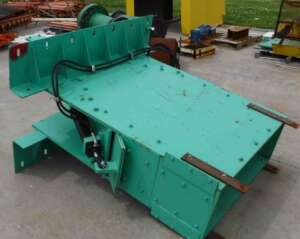

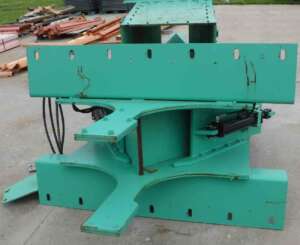

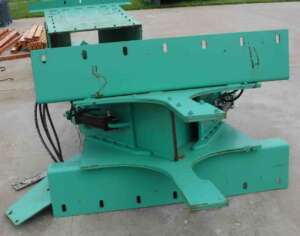

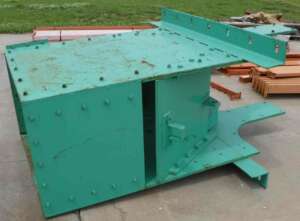

FEED METHOD:Vertical hopper/knife gate controlled. Dual hydraulically powered 45deg angle-opposed position slide gates, for controlling feed rate from gravity feed above.

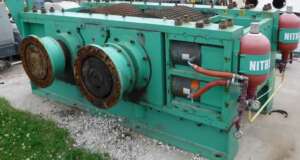

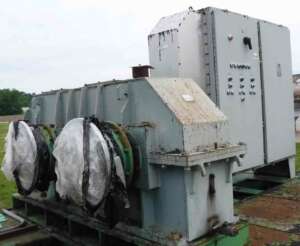

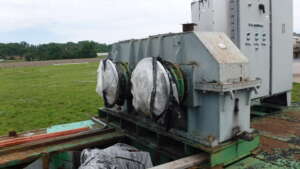

DRIVEN VIA:DO James Mdl.SHB45-DS 28:1 reducer. 900RPM in, 32RPM out. 1.35SF
ROLL SPEED:Varispeed 0-32RPM.
CAPACITY:20-100TPH depending on product, binder, etc
PRIOR SERVICE:Refurbished. Little used since

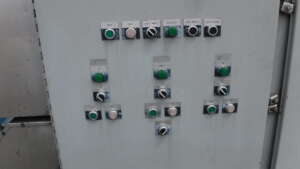

COMMENTS:Unitized on I-beam skid, on 3ft high legs to allow for under roll troughed belt take away conveyor with 5hp motor reducer, speed controlled via VFC/ECB motor controller, relative to roll speed. Lube system, Hydraulic system. VFD w/soft start. Extras avail
