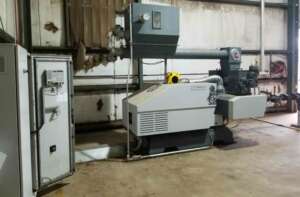

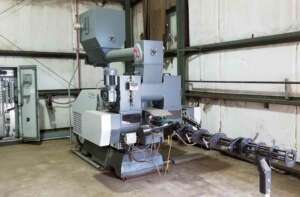

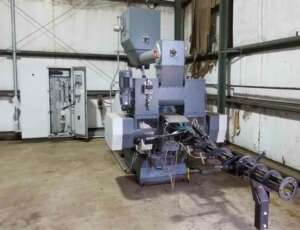

1272148 - BRIQUETTER, C F NIELSEN, BP 6500, PISTON, 60-90MM LOG, 200TONS, CS, 75HP [1]
MFD.BY:C.F. Nielsen
DATE MFD:2012
ROLL TYPE:Electro-mechanical linear compression via constantly rotating eccentric & reciprocating compression piston in a stationary conical die. Producing cylindrical binderless (no bonding agents) briquettes [center thru-hole capable], from cellulosic particles.
MODEL:BP6500 Single head
ROLL SIZE:Piston, linear stroke type, up to 90mm dia. Dia
MATL'S. CNSTRN-ROLLS:CS Pistons
MATL'S. CNSTRN-BODY:CS
BRIQUETTES:60mm dia current die, up to 90mm dia or 75mm x 75mm square. Lengths can be 0.75"-11.75" long w/automatic cut off saw.
ROLL CLOSURE:200ton piston compression approx,. 12:1 compaction approx.
FEED METHOD:Top feed Gravity hopper to compression chamber via 2 integral 9"dia Screw conveyors
DRIVEN VIA:Dual Flywheel
ROLL SPEED:270 strokes/min approx.
CAPACITY:25000PPH/17000KGH approx
PRIOR SERVICE:Briquette applications include open fireplace, stoves, automatic domestic industrial heating, pizza oven, wood oven bakeries, grill, camping
COMMENTS:Installed, very little use, Flywheel 2500#wt.approx. Single machine approx. 5'wide x 7'high x10' long plus motor. wt.7000# approx. Operating conditions /temp 50Deg F min, max 8-14% moisture. Designed for continuous 24/7 production. Feedstock max. chip siz
