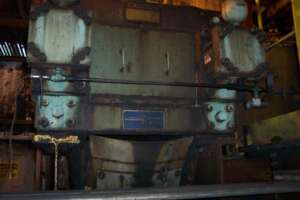

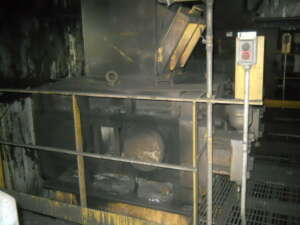

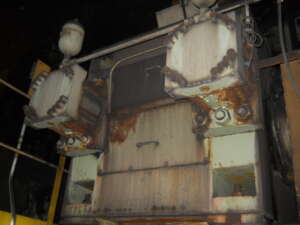

1271088 - BRIQUETTER, KR KOMAREK, DH450, 200TONS, CS, 200HP [3]

  • MFD.BY:KR Komarek
  • DATE MFD:1998

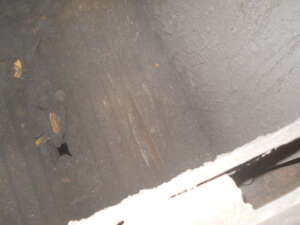

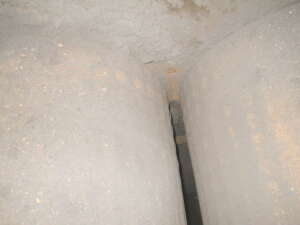

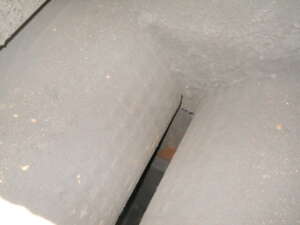

  • ROLL TYPE:Single piece machined sleeve shrunk fit over hub/core. Mill shaft type supported by bearings on both sides of each roll.
  • MODEL:DH450
  • ROLL SIZE:28” dia. X 20"wide face approx.
  • MATL'S. CNSTRN-ROLLS:Alloy steel
  • MATL'S. CNSTRN-BODY:CS

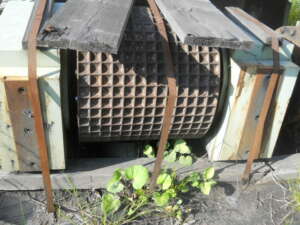

  • BRIQUETTES:Pillow shaped [2] Rod [1]

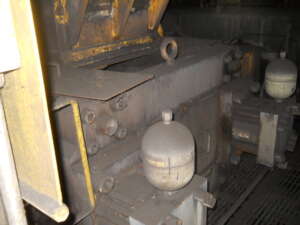

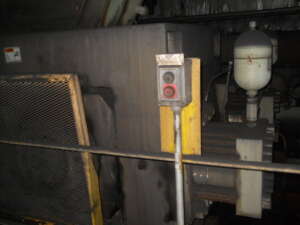

  • ROLL CLOSURE:200 tons. Hydraulic Pump Assembly w/ Fluid Controls

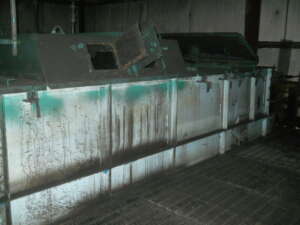

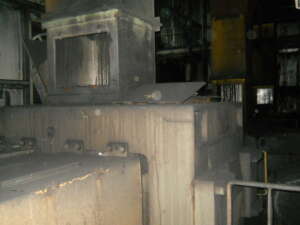

  • FEED METHOD:Vertical, gravity feeder.

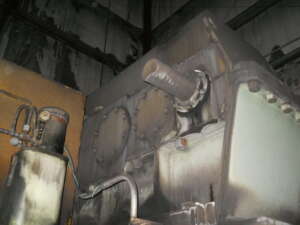

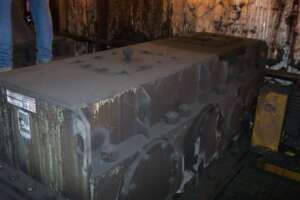

  • DRIVEN VIA:Foote-Jones Illinois Gear reducer, HLX-2253-2G, 76.103:1 ratio. SF 1.65. Torque 548.155 InLbs.
  • ROLL SPEED:Variable
  • CAPACITY:20,000-100,000PPH approx, depending on product.
  • PRIOR SERVICE:Synthetic fuels
  • COMMENTS:Installed indoors. Regularly maintained and operated up till plant closure. Appear to be in good operational condition with minor preventative maintenance. Refurbishing as neccessary available. Unused spares inventory available.
  • SHIPPING SIZE-W X H X L:8'W X 8'H X 12'L
  • APPROX. WEIGHT-LBS:51000#
  • QUANTITY:3
