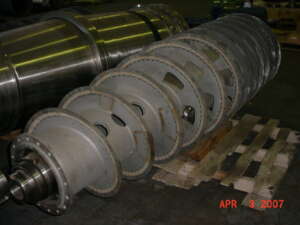

CONVEYOR-LEADS:New Carbide tiled in conical section, feed zone section & 2 wraps of flight into clarification zone. Balance is Stellite weld applied.. Modified for max. clarity- 12" pitch at cake disch end, 10" pitch in clarification zone, single lead. Conveyor is quasi

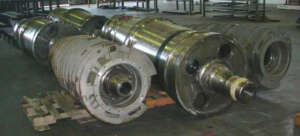

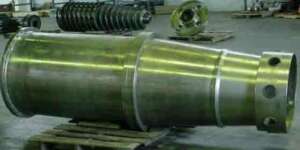

BOWL SIZE:31.7" dia x 103.5" long. 4.72in pool depth.
BOWL CONTOUR:8 deg approx. beach end
STYLE:Feed at drive end, opposite gearbox

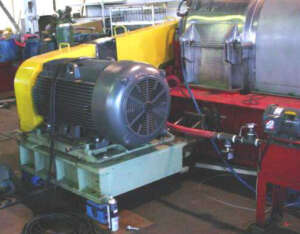

DRIVEN BY:250HP main, 60HP back drive.

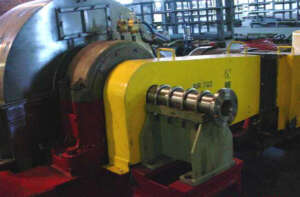

DRIVEN VIA:V-belts & scroll via Gearbox

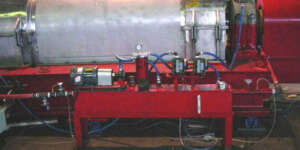

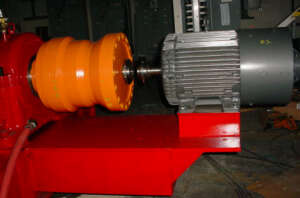

BACKDRIVE:40HP approx.Variable speed VFD ABB & Allen Bradley
BOWL SPEED:2400 rpm max. produces 2600 X G max.
PRIOR SERVICE:Unused since reconditioning in 2007 approx. Capacity- 27-40 Cu. M/Hr. [90-135GPM] per OEM

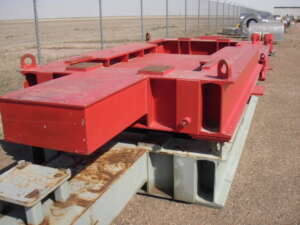

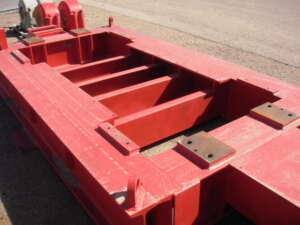

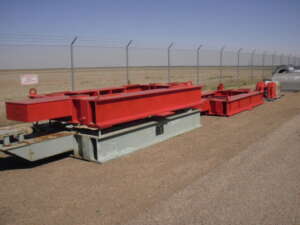

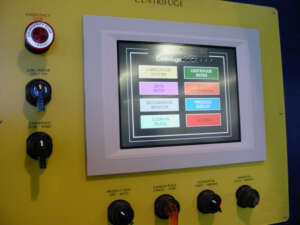

COMMENTS:Project cancelled. Approx. 3-400GPM capacity on stillage. Package with new VFD [ABB] & new controls [Allen Bradley] and new drives. New Lube system also included. Capacity approx.1.83 X that of a P5400/SG-14. Slightly bigger than a PM76000.
