- MFD.BY:Westfalia Separator AG
- DATE MFD:1999

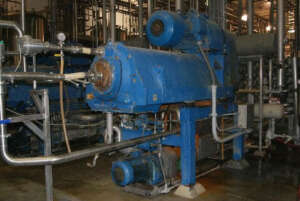

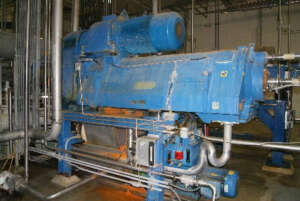

- TYPE:Decanter horizontal Solid bowl, 2 phase separation liquid/solid.
- MODEL:CA-505-01-02
- MAT'LS. CONSTRN-BOWL ASS'Y:SAN SS
- MAT'LS. CONSTRN-CONVEYOR:SAN SS
- CONVEYOR-LEADS:SAN SS. Hard surfaced
- BOWL SIZE:510mm/20" X /2040mm/80".
- STYLE:Solids discharge at driven end. Feed & liquids discharge at opposite end.
- DRIVEN BY:125HP V-belt drive.
- DRIVEN VIA:V belts via fluid coupling
- BACKDRIVE:30HP. V- belt, driven by main motor via fluid coupling w/smaller pulley to Cyclo gear.
- BOWL SPEED:3600
- PRIOR SERVICE:Fruit Juice

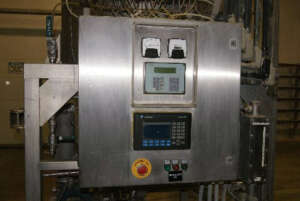

- COMMENTS:Installed. Pressure discharged clarified liquid via integral centripetal pump. Freestanding control center cabinet, LCD read out. Feed Pump. Lube system. Centripetal pump liquids discharge. Belt guards.
- SHIPPING SIZE-W X H X L:4'W X 7'H X 12'L
- APPROX. WEIGHT-LBS:14000#
- QUANTITY:2
