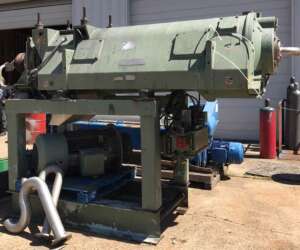

1271890 - C-FUGE, DECANTER, WESTFALIA, CA505-01-12, 20'' X 80'', SAN.316SS, 125HP & 30HP [1]

  • MFD.BY:Westfalia Separator AG
  • DATE MFD:1998
  • TYPE:Decanter horizontal Solid bowl, 2 phase separation liquid/solid.
  • MODEL:CA-505-01-12
  • MAT'LS. CONSTRN-BOWL ASS'Y:SAN SS
  • MAT'LS. CONSTRN-CONVEYOR:SAN SS
  • CONVEYOR-LEADS:SAN SS. Hard surfaced.
  • BOWL SIZE:500mm/20" X /2040mm/80".
  • STYLE:Solids discharge at driven end. Feed & liquids discharge at opposite end.
  • DRIVEN BY:125HP V-belt drive.
  • DRIVEN VIA:V belts via fluid coupling
  • BACKDRIVE:30HP. V- belt, driven by main motor via fluid coupling w/smaller pulley to Cyclo gear.
  • BOWL SPEED:3500
  • PRIOR SERVICE:Sanitary. Foodstuffs. Solids 2.0 max
  • COMMENTS:Pressure discharged clarified liquid via integral centripetal pump. Freestanding control center cabinet, LCD read out. Feed Pump. Lube system. Centripetal pump liquids discharge. Belt guards.
  • SHIPPING SIZE-W X H X L:4'W X 7'H X 12'L
  • APPROX. WEIGHT-LBS:14000#
  • QUANTITY:1
