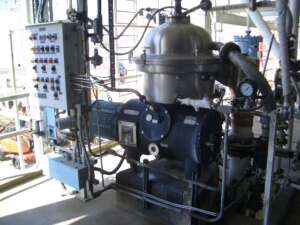

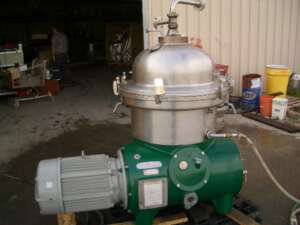

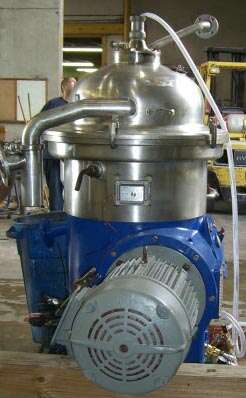

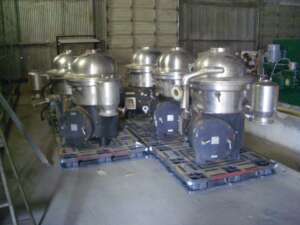

1270030 - C-FUGE, DISC, WESTFALIA, SA-40-02-576, 316SS, 50HP, 3-WAY SEPARATOR [1]

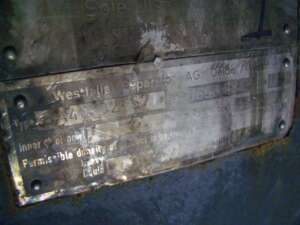

  • MFD.BY:Westfalia [Centrico, Northvale, NJ]
  • DATE MFD:1976

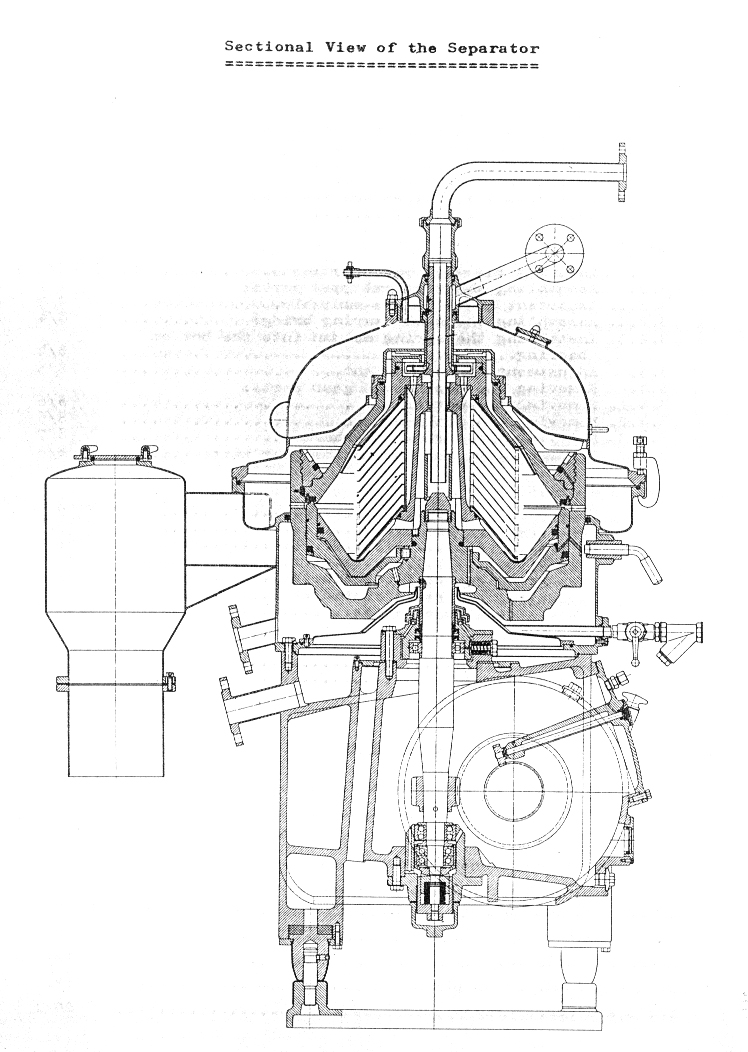

  • TYPE:Vertical, disc stack, 3-way Separator. Separates 2-liquids & solids and intermittently ejects solids
  • MODEL:SA-40-02-576
  • MAT'LS. CONSTRN-ROTATING ASS'Y:316SS
  • MAT'LS. CONSTRN-UPPER CASING:316SS
  • MAT'LS. CONSTRN-BASE/FRAME:CS
  • DRIVEN BY:50HP, 3/60/230-460V, 1770rpm. Fr 326TD, XP
  • BOWL SPEED:Max. 4500 rpm. Bowl dia 630mm approx. 7000 X G approx.
  • CAPACITY:50-70gpm approx. Hvy Liq 13g/Cm3, Solids 15g/Cm3. 60gpm Biodiesel svc. Approx.

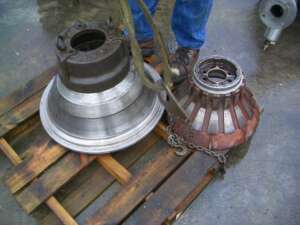

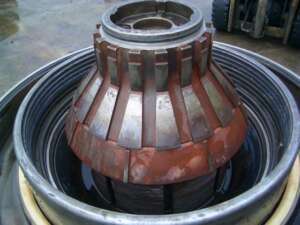

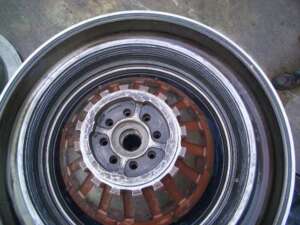

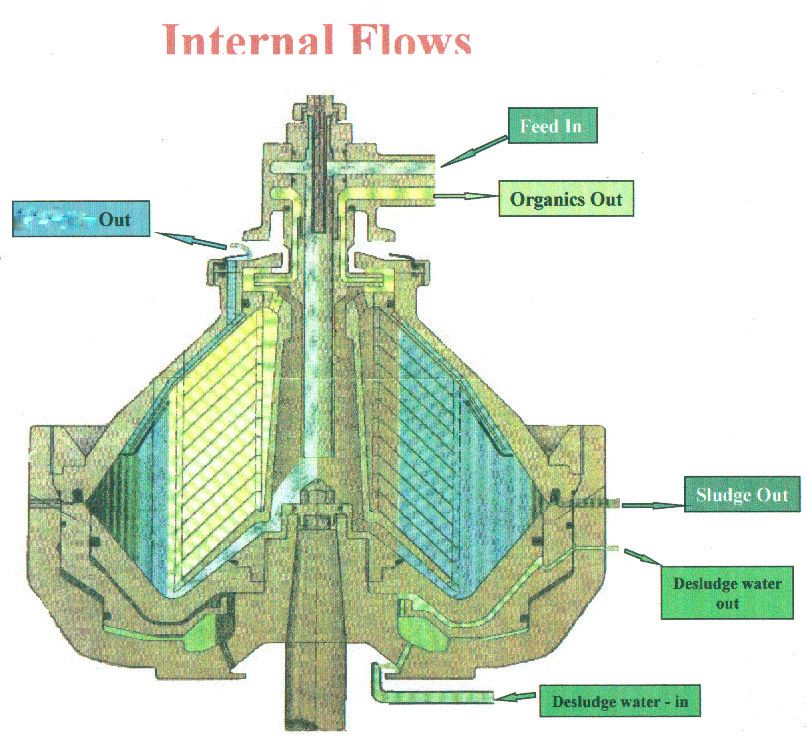

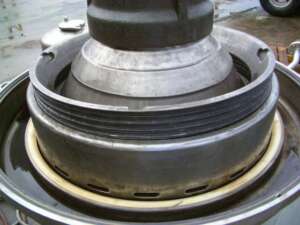

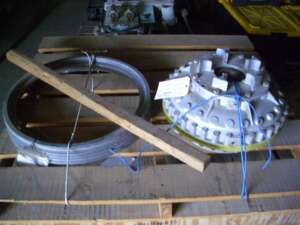

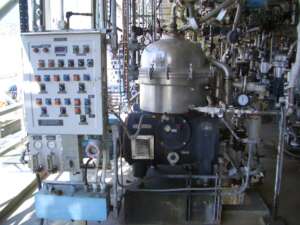

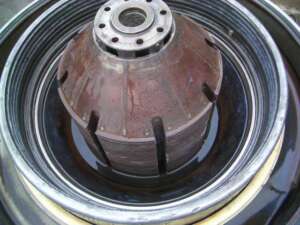

  • COMMENTS:Automatic Bowl De Sludging / Solids ejection type. Available as-is or refurbished. Was running through 10/06. Approx.121 Discs with 0.7mm caulk/spacer tabs. Self cleaning bowl. Feed in top, 1-1/2"dia., Light phase discharge [oil typical], via integral ce
  • SHIPPING SIZE-W X H X L:3'W X 7'H X 6'L
  • APPROX. WEIGHT-LBS:3080#
  • QUANTITY:1
