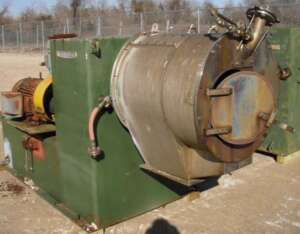

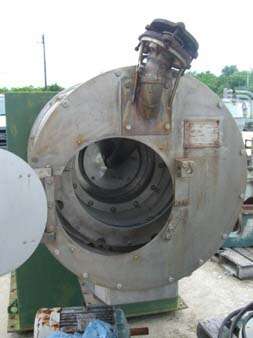

1270554 - C-FUGE, PUSHER, E-WYSS, P500-2, 2-STAGE, 500MM, MONEL, 50HP, 25HP [2]

  • MFD.BY:Escher Wyss
  • DATE MFD:1985 approx.
  • TYPE:Pusher
  • MODEL:P500-/2

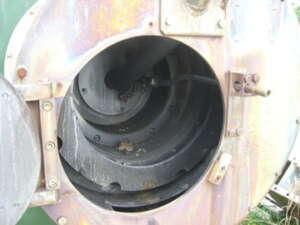

  • BASKET DIA:500MM-20''
  • SCREEN SIZE:0.0205'' [0.5mm]
  • MAT'LS CONSTRN-ROTATING ASS'Y:Monel
  • MAT'LS CONSTRN-HOUSING:316LSS

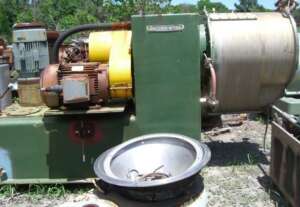

  • DRIVEN BY:50 HP bowl drive, 3/60/230-460V. 1800rpm
  • DRIVEN VIA:V-Belt
  • OSCILLATION/PUSHER DRIVE:25HP 3/60/230-460V. Approx.
  • CAPACITY:24tph approx., depending on product.
  • PRIOR SERVICE:Brine / Chlorine svc.
  • COMMENTS:Main motor VFD, hydraulic motor across line start. One unit missing motors & hydraulic oil tank. Reconditioning 4-5wks. NTE $40000. Control panel, with VFD NTE $35000 5-6wks. 316SS outer housing. Monel basket.
  • SHIPPING SIZE-W X H X L:5'W X 5'H X 7'L
  • APPROX. WEIGHT-LBS:7500#
  • QUANTITY:2
