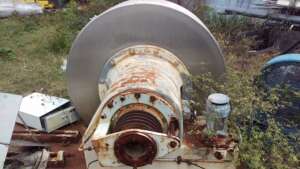

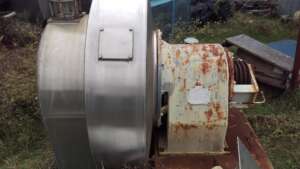

1271326 - C-FUGE, PUSHER, SIEBTECHNIK, CONTURBEX H520, WORM SCREEN, 520MM, 316SS, 40HP [1]

  • MFD.BY:Siebtechnik, Mulheim GMBH
  • DATE MFD:1985

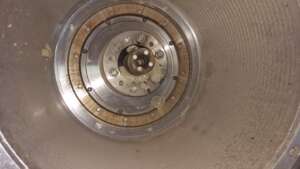

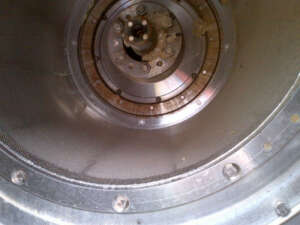

  • TYPE:1 Stage, horizontal 'Worm Screen' basket screen bowl centrifuge. Conical perforated screen with opposing concentric scroll solids discharge
  • MODEL:Conturbex H520
  • BASKET DIA:520MM, 20 Deg taper cone
  • SCREEN SIZE:To suit
  • MAT'LS CONSTRN-ROTATING ASS'Y:316SS [German 1/4581 Gr]
  • MAT'LS CONSTRN-HOUSING:316SS [German 1/4581 Gr]
  • DRIVEN BY:40HP motor [available, extra]
  • DRIVEN VIA:Belt via Cyclo gear.
  • OSCILLATION/PUSHER DRIVE:Cyclo gear uses pulley from main drive motor. Sends separate shaft rotation to transport Scroll or 'worm'
  • CAPACITY:110 gpm
  • COMMENTS:Includes water back flush connections. Rebuild <$35000, 4-6wks, 6Mo warranty. Includes- new main motor and oil pump motor. Sandblast and paint all CS parts. Rebuild cyclo gear unit and rotating assembly, include 1spare screen. Test run on control for clie
  • SHIPPING SIZE-W X H X L:6'W X 5'H X 8'L
  • APPROX. WEIGHT-LBS:4000#
  • QUANTITY:1
