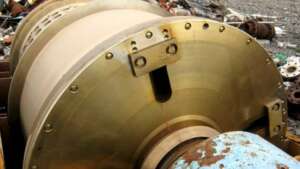

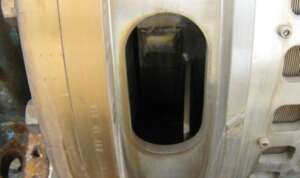

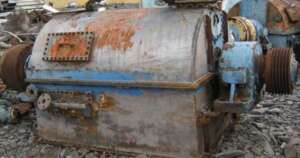

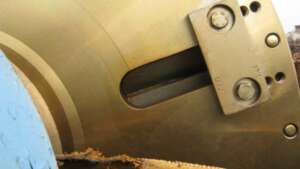

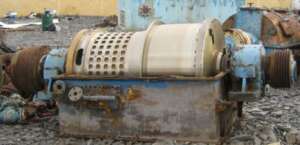

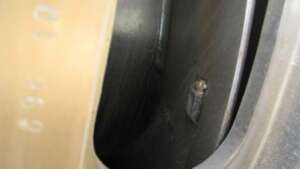

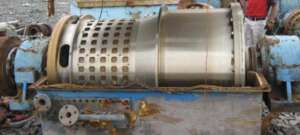

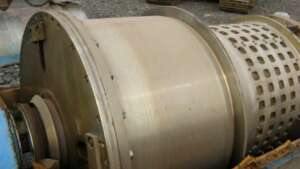

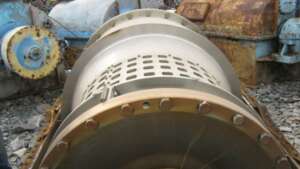

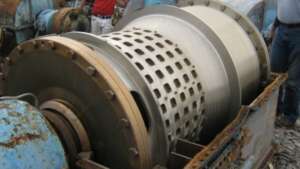

1270813 - C-FUGE, SCREEN BOWL, BIRD, 40'' X 60'', 316LSS, 100HP [1]

  • MFD.BY:Bird Machine Co.
  • TYPE:Screen Bowl Decanter, horizontal, 2 phase separation liquid/solid.
  • MODEL:40" x 60"
  • MAT'LS. CONSTRN-BOWL ASS'Y:316SS
  • MAT'LS. CONSTRN-CONVEYOR:316SS
  • CONVEYOR-LEADS:8.5" pitch single lead.
  • BOWL SIZE:40 x 60
  • BOWL CONTOUR:10/3
  • STYLE:Right hand machine
  • DRIVEN BY:100HP-150HP required, missing motor 3/60/460V, TEFC approx.
  • DRIVEN VIA:Planetary gear, 22:1 ratio SA70 gearbox
  • BACKDRIVE:NA
  • BOWL SPEED:Max. 1200 rpm
  • PRIOR SERVICE:Coal
  • COMMENTS:Offered in as-is condition. Needs to be reconditioned, at additional cost, as follows- Complete overhaul includes disassembly of rotating assembly, balance, bearings and seals, [optional fitting flites with Tungsten carbide tiles], sandblast and paint all
  • SHIPPING SIZE-W X H X L:7'W X 4'H X 12'L
  • APPROX. WEIGHT-LBS:28000#
  • QUANTITY:1
