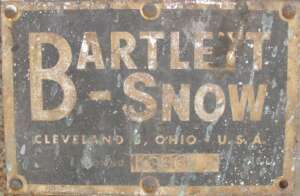

- MFD.BY:Bartlett & Snow
- DATE MFD:1953 approx.

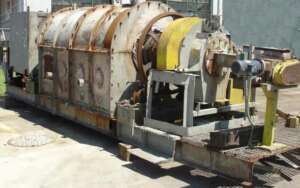

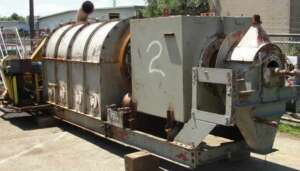

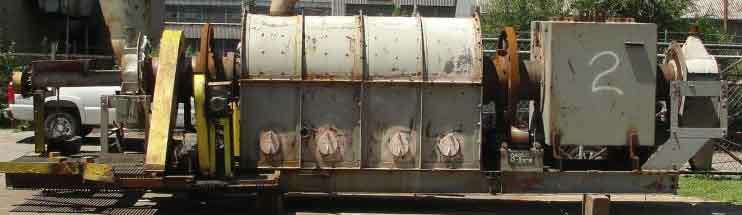

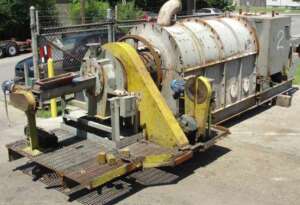

- TYPE:Indirect fired rotary drum in stationary insulated box section outer housing.
- DIAMETER:14"ID Tube
- LENGTH:7'8" under housing, 18'5" ft oall drum
- MATL'S.CNSTRN-INNER SHELL:SS. 21%Cr, 9%Ni, 300 series SS.
- MAT'LS. CNSTRN-OUTER SHELL:CS.
- SHELL SEALS:Mechanical
- HEATING:Gas.
- MAX.TUBE TEMPERATURE:1600Deg F approx.
- PRODUCT TEMP PRIOR SVC:1200Deg F approx.
- ZONES:4 zones total 7'8" heating. Water spray cooled section, 4ft.
- DRIVEN BY:1HP Approx.
- DRIVEN VIA:Gear reducer, output to chain & sprocket drive. Drum 3.9-11.8RPM.
- CAPACITY:50-250PPH est. approx. Varies with product, moisture content etc.
- PRIOR SERVICE:Chemical R&D, Catalyst
- COMMENTS:4" x 3' long screw feeder, w/VFD drive. Skid mounted. Documentation available.
- SHIPPING SIZE-W X H X L:6'W X 6'H X 32'L
- APPROX. WEIGHT-LBS:20000#
