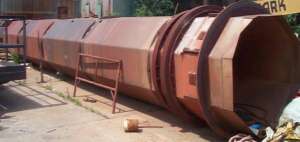

1269595 - CALCINER, 60'' X 37', 330SS, 2200DEG F, GAS [1]

  • MFD.BY:Vulcan
  • DATE MFD:1983-88
  • TYPE:Indirect heat. Gas-fired by indirect gas burners.
  • DIAMETER:60" across flats, Octagonal cross section, 64" across corners, inside.
  • LENGTH:32' in hot zones [37' tube length overall] approx.
  • MATL'S.CNSTRN-INNER SHELL:330SS [Austenitic alloy, Ni 34-37%, Cr 17-20%, Si 0.75-1.5%, Fe bal. Excellent resistance to carburization & oxidation up to 2200deg F/1200 Deg C].
  • MAT'LS. CNSTRN-OUTER SHELL:C.S. w/refractory lining. [Original NA, replacement required]
  • SHELL INTERNALS:NA
  • SHELL SEALS:Mechanical [Original NA, replacement required]
  • HEATING:Gas. 9 @ 5mm/btu hr N.American[Cleveland,OH] mdl.4422-5 or -6 Lo-Nox nozzle mix burners w/Fisher control valves. Burners have excess air stream feature, CI construction w/Inconel air tubes. Used for chamber temps up to 2000Deg F. Rated 75,000-905,000btu/
  • MAX.TUBE TEMPERATURE:2200deg F/1200 Deg C.
  • PRODUCT TEMP PRIOR SVC:1650°F /884Deg C approx.
  • ZONES:3 w/32' total heating, 3 burners per zone. Total heat 8mm or 13mm btu/hr approx.
  • DRIVEN BY:10HP approx. 3/60/460V 1765rpm motor.
  • DRIVEN VIA:Variable speed drive, Gear reducer, Bull gear & Pinion. 1-3rpm drum speed approx.
  • CAPACITY:1500-10000PPH depending on product, variable by drum speed and feed rate, Temp, residence time, etc.
  • PRIOR SERVICE:Iron Oxides
  • COMMENTS:Dismantled and stored. Drum with support trunnions & rollers, drum expansion bellows, drive and gear. Calciner was I -beam skid mounted, frame 47'long. Installed length 50'. Jacketed cooling screw conveyor discharge, 12", CS available.nTo be refurbishe
  • SHIPPING SIZE-W X H X L:6'W X 9'H X 50'L
  • APPROX. WEIGHT-LBS:40000#
