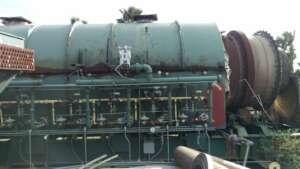

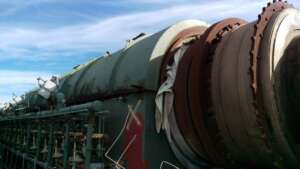

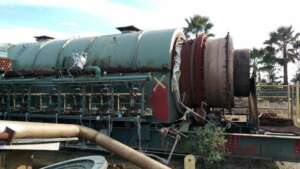

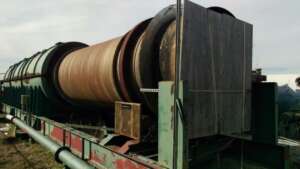

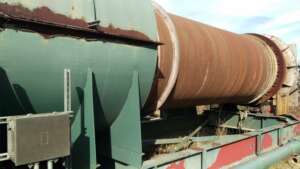

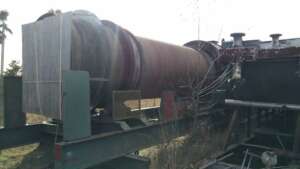

1270494 - CALCINER, 72'' X 57', 309SS, 1800DEG F, GAS [1]

  • MFD.BY:AJ Sackett
  • DATE MFD:1997
  • TYPE:Indirect fired.
  • MODEL:6 X 57
  • DIAMETER:6' ID
  • LENGTH:57'
  • MATL'S.CNSTRN-INNER SHELL:309SS approx 0.375" thick. Feed end dam ring 0.25" 304SS
  • MAT'LS. CNSTRN-OUTER SHELL:CS. Furnace flanged at centerline for removal. ~6" refractory lined.

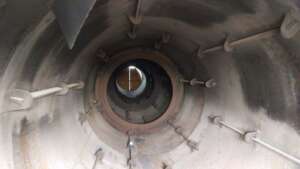

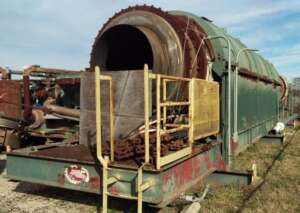

  • SHELL INTERNALS:12 bolted removable longitudinal lifters. Spiral flite infeed 4' long approx.

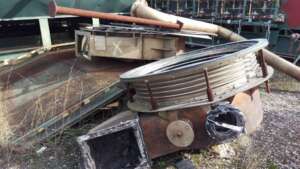

  • SHELL SEALS:Bellows seals at each end.

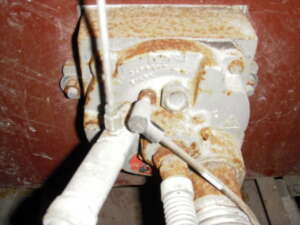

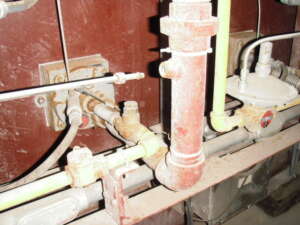

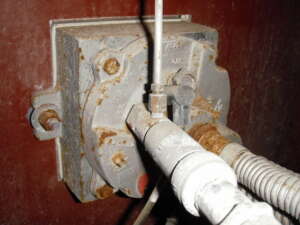

  • HEATING:16 @ N American NG Mdl. 4442-4 gas burners, 540,000BTU/Hr ea, w/10:1 turndown, pilot ignited and monitored with weather resistant UV detectors. 4 per zone mounted horizontal. Total 8,640,000Btu/Hr. Fuel consumption 9300CFH. Heated section under shroud w/4
  • MAX.TUBE TEMPERATURE:1800°F/ 950 Deg C approx.
  • PRODUCT TEMP PRIOR SVC:1800°F approx.
  • ZONES:4 heating zones, 45' 6''long total. [Originally 3 heating zones 32'6''long & 1 @ 13'6"cooling zone] 4th heating zone section conversion replaces cooling zone, new fabricated shroud & refractory brick lining, 4 burners identical to existing with controls.
  • DRIVEN BY:30HP 3/60/230-460v 1750rpm, XP, w/18hp gas engine back up, via Dodge Para Flex coupling to Dodge TCR6 inline reducer, 20rpm output. Cutler Hammer AC variable frequency inverter, SS NEMA 4 control panel with purge system.
  • DRIVEN VIA:Direct drive to gear reducer to Bullgear & pinion drive. Variable speed controller, 0.5- 3RPM drum final speed.
  • CAPACITY:Dependent on product, rpm, slope, heat input etc.
  • PRIOR SERVICE:Refinery waste. Previously catalyst, 420CFH [10TPH] Continuous throughput, partial vacuum environment.

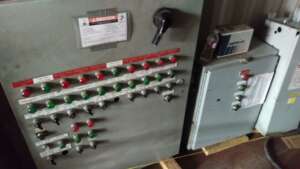

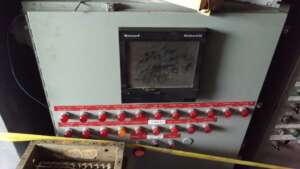

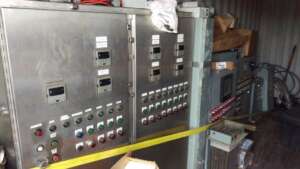

  • COMMENTS:3 controls panels in a 10' x 20' portable room. Skid mounted. [13'7" W w/drive attached] Not installed. 9" feed screw conveyor. 6" Vent gas discharge at feed end. Originally had an air sweep lance, 6"dia, entering calciner at discharge end, centerline w
  • SHIPPING SIZE-W X H X L:9'6"W X 12'2"H X 64'L
  • APPROX. WEIGHT-LBS:83800#
