- MFD.BY:Kvaerner
- DATE MFD:2001

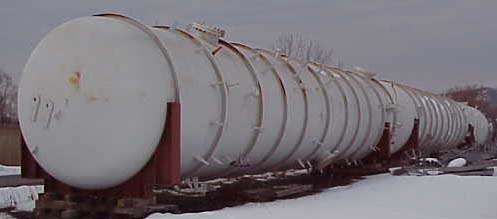

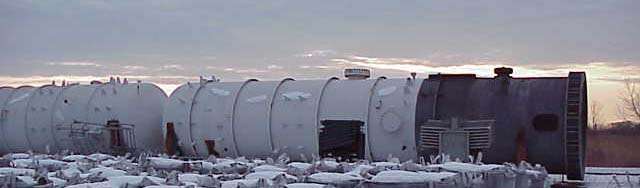

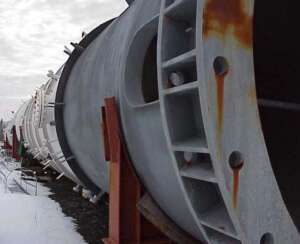

- PRIOR SERVICE:Crude and Product Process Distillation Column
- DIAMETER:11'ID
- HEIGHT:151' t-t
- SUPPORT:Skirt 10' high, 6' ground clearance approx.
- OVERALL HEIGHT:160' approx.
- MAT'L. CONSTRN-TOP HEAD:CS SA516 GR 70 [2:1 elliptical]
- MAT'L. CONSTRN-SHELL SECTION:CS SA516 GR 70
- MAT'L. CONSTRN-BOTTOM HEAD:CS SA516 GR 70 [ 2:1 elliptical]
- TEMPERATURE:402 Deg F top 455 Deg F bottom
- INTERNALS:120 trays on 12" spacing approx. 12Ga 304SS, Pass, Crossflow & slotted trays
- COMMENTS:UNUSED. Documentation available. ~120,000Gallon water capacity.
- SHIPPING SIZE-W X H X L:12'6''W X 12'6"H X 160'L
- APPROX. WEIGHT-LBS:270000#
- QUANTITY:2
