- MFD.BY:Doosan
- DATE MFD:2015
- PRIOR SERVICE:Absorber
- DIAMETER:141.5'' ID
- HEIGHT:62' t-t
- SUPPORT:Skirt, 20' Approx.
- OVERALL HEIGHT:100' approx.
- MAT'L. CONSTRN-TOP HEAD:316LSS Clad CS SA516. 4.5'' tk approx. Hemispherical
- MAT'L. CONSTRN-SHELL SECTION:316LSS Clad CS SA516 5'' tk approx.
- MAT'L. CONSTRN-BOTTOM HEAD:316LSS Clad CS SA516 4.5'' tk approx. Hemispherical
- TEMPERATURE:-10/+142 Deg C
- CERTIFICATION:ASME
- INTERNALS:Top: Mist Eliminator pad. 20" liquid feed /distributor manifold. Upper 30ft packed section, 100CuM 316SS. Raschig ring packing [RSR#2]. Lower packing support tray. 13ft space. Lower 42" Packed Bed 11CuM of 316SS Raschig ring packing [RSR#3]
- CONNECTIONS-TOP:20" flanged connection
- CONNECTIONS-SHELL:30"MW & cover, 24"[3], 20", 18" flanged connections
- CONNECTIONS-BOTTOM:20"CBO

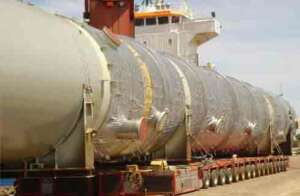

- COMMENTS:Unused. Documentation available. Loading available, currently by water.
- SHIPPING SIZE-W X H X L:15'3"W X 17'6"H X 93'L
- APPROX. WEIGHT-LBS:540000#
- QUANTITY:1
