- MFD.BY:DeDeitrich
- DATE MFD:1990
- PRIOR SERVICE:Distillation
- DIAMETER:24"OD approx.
- HEIGHT:41't-t approx.
- SUPPORT:CS ring, installed in I-beam structure, packaged, free standing.
- MAT'L. CONSTRN-TOP HEAD:G/L CS 25/64" wall thickness approx.

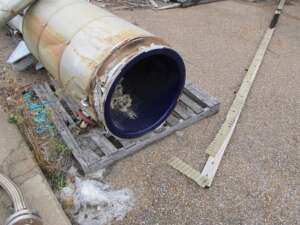

- MAT'L. CONSTRN-SHELL SECTION:G/L CS 25/64" wall thickness approx.
- MAT'L. CONSTRN-BOTTOM HEAD:G/L CS 25/64" wall thickness approx.
- TEMPERATURE:500Deg F

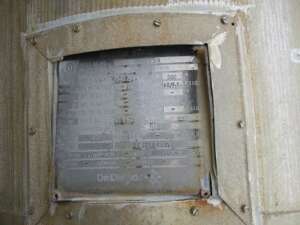

- CERTIFICATION:ASME N.Bd
- INTERNALS:Ceramic saddle packing
- CONNECTIONS-TOP:8" approx.
- CONNECTIONS-SHELL:Various
- CONNECTIONS-BOTTOM:4" approx.
- COMMENTS:4 sections, clamped together.
- SHIPPING SIZE-W X H X L:3'W X 3'H X 20'L
- APPROX. WEIGHT-LBS:20000#
- QUANTITY:1
