- MFD.BY:Metal Arts
- DATE MFD:1967
- DIAMETER:36''ID 3/16"Tk
- HEIGHT:39' Seam-seam
- SUPPORT:Skirt 5'long. CS
- OVERALL HEIGHT:46' approx.
- MAT'L. CONSTRN-TOP HEAD:316SS 1/4" Tk.
- MAT'L. CONSTRN-SHELL SECTION:316SS 3/16" Tk
- MAT'L. CONSTRN-BOTTOM HEAD:316SS
- TEMPERATURE:350°F
- HYDROTEST:85#
- CERTIFICATION:ASME. Not Nbd

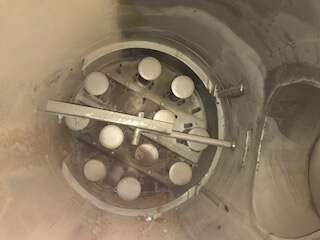

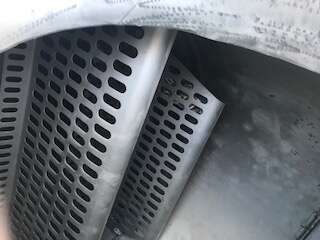

- INTERNALS:Structural Packing originally. Perforated tray in middle. Top 12 valve tray
- CONNECTIONS-TOP:10" [tbc]
- CONNECTIONS-SHELL:16"[3], 10" 150# RFWN [tbc]
- CONNECTIONS-BOTTOM:6" CBO w/90deg out skirt side. 150# [tbc]

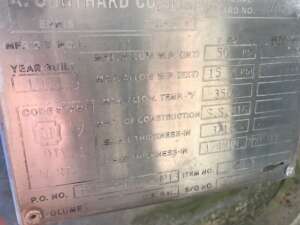

- COMMENTS:Altered to ASME & stamped, by Gunthard 1983. 2 top Lifting lugs.
- SHIPPING SIZE-W X H X L:4'W X 4'H X 46'L
- APPROX. WEIGHT-LBS:3450#
- QUANTITY:1
