- MFD.BY:Continental Fabricators, St Louis
- DATE MFD:1992
- PRIOR SERVICE:Gas Cooler
- DIAMETER:48'' ID
- HEIGHT:28'6'' s-s
- SUPPORT:Lugs
- OVERALL HEIGHT:31'6''
- MAT'L. CONSTRN-TOP HEAD:316LSS 1/4" thick, 2:1 ellip.
- MAT'L. CONSTRN-SHELL SECTION:316LSS 1/4" thick
- MAT'L. CONSTRN-BOTTOM HEAD:316LSS 1/4" thick, 2:1 ellip.
- TEMPERATURE:212°F @ MDP
- HYDROTEST:164 psig @ 212deg F ASME. NBd.
- CERTIFICATION:ASME

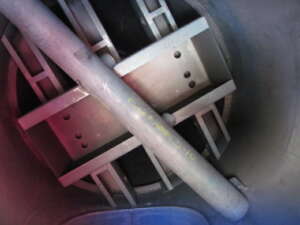

- INTERNALS:Bottom packing support tray at 7'5" above bottom T-L. Top distributor piping above top of packing at 24"6".
- CONNECTIONS-TOP:14" 150# LJ, vapor out
- CONNECTIONS-SHELL:MH 24"[3], 18", 16" vapor in, 14", 8", 6" [2], 4", 3", 1-1/2" [5] 150#LJ
- CONNECTIONS-BOTTOM:6"cbo, 150#LJ liquid out
- COMMENTS:Insulated and sheathed.
- SHIPPING SIZE-W X H X L:5'W X 5''H X 31'6''L
- APPROX. WEIGHT-LBS:13400#
- QUANTITY:1
