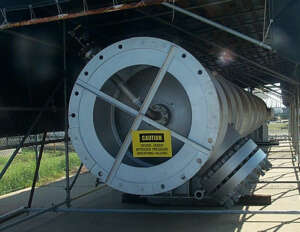

- MFD.BY:COEK NV Geel, Belgium
- DATE MFD:2008
- PRIOR SERVICE:Reactor.
- DIAMETER:56'' ID
- HEIGHT:58'4'' t-t
- SUPPORT:Skirt
- OVERALL HEIGHT:63'4''
- MAT'L. CONSTRN-TOP HEAD:Ti.Gr1 Clad 1/8" approx. on CS backing 2" thick Approx. Explosion bonded.
- MAT'L. CONSTRN-SHELL SECTION:Ti.Gr1 Clad 1/8" approx. on CS backing 2.25" thick Approx. Explosion bonded.
- MAT'L. CONSTRN-BOTTOM HEAD:Ti.Gr1 Clad 1/8" approx. on CS backing 2" thick Approx. Explosion bonded.
- TEMPERATURE:-10/+500Deg F MWT
- HYDROTEST:1500 psig
- CERTIFICATION:ASME VIII, Div.1. NB. Full X-Ray 100%
- INTERNALS:4 internal baffles @ 8' spacing. Titanium ladder. 958CF volume.
- CONNECTIONS-TOP:8'' approx. 900psig flanges, Ti.Gr2.
- CONNECTIONS-SHELL:20"MH, 12''. 900psig flanges, Ti.Gr2.
- CONNECTIONS-BOTTOM:4'' CBO. 900psig flanges, Ti.Gr2.
- COMMENTS:UNUSED. Stored under N2. Under cover.
- SHIPPING SIZE-W X H X L:7'8''W X 8'4''H X 64'L
- APPROX. WEIGHT-LBS:88185#
- QUANTITY:1
