- MFD.BY:VTEC
- DATE MFD:1996 approx.
- PRIOR SERVICE:Flue Gas Cooler
- DIAMETER:84"
- HEIGHT:27'8" seam-seam
- SUPPORT:Skirt
- OVERALL HEIGHT:33'11"

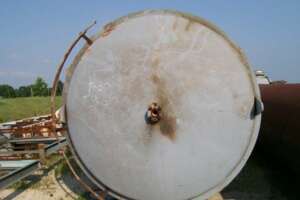

- MAT'L. CONSTRN-TOP HEAD:CS SA516-70. 3/8" thick
- MAT'L. CONSTRN-SHELL SECTION:CS SA516-70. 3/8" thick
- MAT'L. CONSTRN-BOTTOM HEAD:CS SA516-70. 3/8" thick
- TEMPERATURE:650°F
- HYDROTEST:144 psi
- CERTIFICATION:ASME

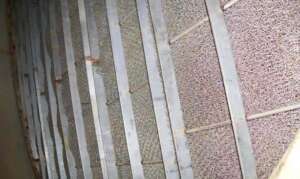

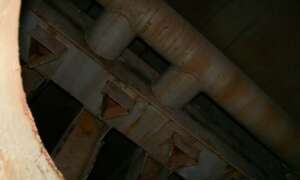

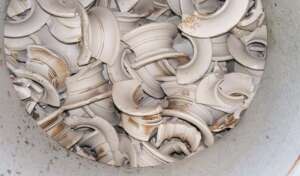

- INTERNALS:Packed. Ceramic saddles. Feed distribution header. SS Demister, SS mesh.
- CONNECTIONS-TOP:2"

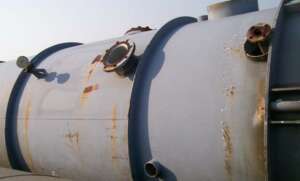

- CONNECTIONS-SHELL:24", 20", 18"MH[2], 8"[2], 6", 2", 1-1/2", 1"[2]
- CONNECTIONS-BOTTOM:16"/2-1/2"

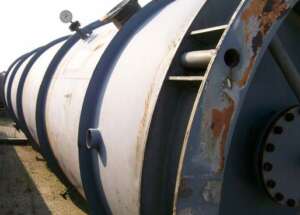

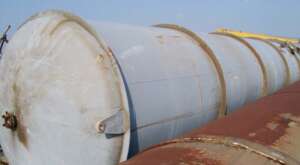

- COMMENTS:2 Lifting eyes on top head. 5 equispaced stiffening rings around shell, 4"W x 3/8"TK approx.
- SHIPPING SIZE-W X H X L:8'W X 8'H X 34'L
- APPROX. WEIGHT-LBS:17000#
- QUANTITY:1
