DRIVEN BY:900HP, electric motor. 1200RPM, GE Synchronous Mdl 5TS830955A8. 3/60/4160v, Fr 8309S, 96.3A, Type TS, 1035HP Cont. Exc. Volts 100. Space Heater.
DRIVEN VIA:Direct coupled to speed Increaser, parallel shaft, 5.282:1 ratio tbc.
CAPACITY-VOLUME:20000 acfm
PRESSURE- INLET:14.7 psia @ 84 Deg F
PRESSURE-DISCH:22.7 psia @ 100Deg F approx
CONNECTIONS-INLET:18'' tbc
CONNECTIONS-DISCHARGE:18'' tbc
PRIOR SVC:Municipal waste water treatment plant aeration air supply

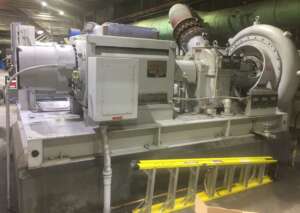

COMMENTS:900 HP motor. Installed indoors. Lube Oil in frame. System packaged on an I-Beam frame approx 6'w x 12'long. Compressor overhangs frame. Assembly last installed on 2ft high concrete pedestal. Stand alone electrical control panels.
