- MFD.BY:Stone Conveyor Co. [tbc]
- DATE MFD:1995

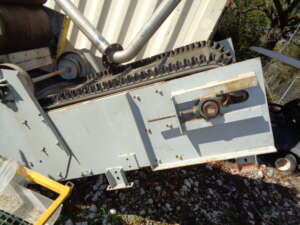

- TYPE:Cleated Flat Belt
- BELT WIDTH:24''
- BELT LENGTH:14 long.
- CONFIGURATION:Inclined 45deg, 14' long, 10' elevation, approx. Lower 3' is horizontal, feed end.
- MAT'L. CONSTRN-BELT:2 ply Goodyear Pylon 2100B belt [tbc]
- DRIVEN BY:2HP approx.
- DRIVEN VIA:Reducer
- CAPACITY:2 cu.ft. material/minute approx.
- PRODUCT DENSITY:50-70 lbs/cu.ft. approx.
- PRIOR SVC:Dry Filter cake elevation 10' to transport
- COMMENTS:Flat belt with cleats and side walls.
- SHIPPING SIZE-W X H X L:3'W X 3'H X 14'L
- APPROX. WEIGHT-LBS:2000#
- QUANTITY:1
