- MFD.BY:TBD
- DATE MFD:1998 approx.
- TYPE:Bucket Elevator
- SIZE-WIDE:12"wide x 30" deep aprox.
- SIZE-HIGH:50'

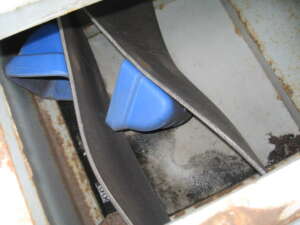

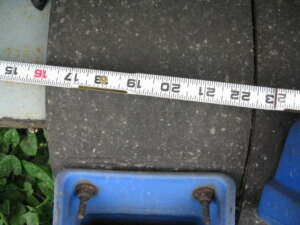

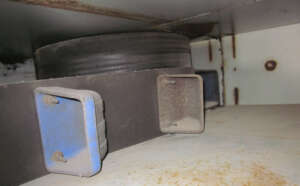

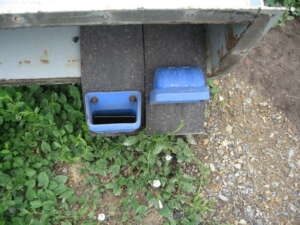

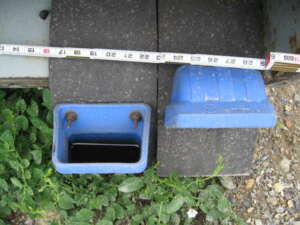

- SIZE-BUCKETS:6" wide x 4" deep, 0.025CF ea. approx. 2 bolt mounting on 7" wide ply belt.
- MAT'LS CONSTRN-HOUSING:CS

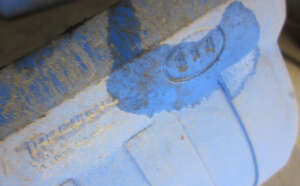

- MAT'LS CONSTRN-BUCKETS:HDPE
- CONNECTIONS-INLET:12" sq approx.

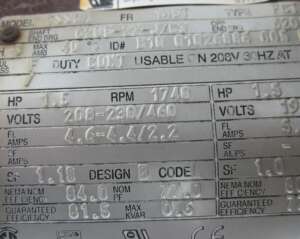

- DRIVEN BY:1.5HP, Fr 145T, 3/60220-440v, 1740rpm.via 4" vee belt pulley, connects to reducer 6" pulley.

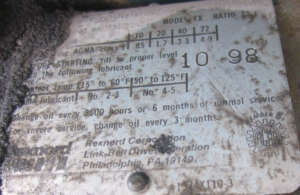

- DRIVEN VIA:Gearmotor.Linkbelt shaft mounted, 25:1 red. Direct coupled to head wheel driver, approx. 18" dia.
- CAPACITY:10-15TPH approx. max. Depends on bulk density. Belt speed est 218fpm./328CFH.

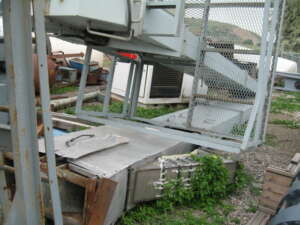

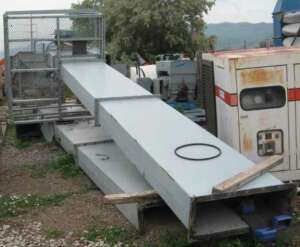

- COMMENTS:4 sections, flanged. Single leg type. Dismantled, 2 sections for shipping, In storage. Top platform and handrail. Top mounted drive.
- SHIPPING SIZE-W X H X L:7'W X 7'H X 50'L
- APPROX. WEIGHT-LBS:5000#
- QUANTITY:1
