- MFD.BY:Huemman Environmental
- DATE MFD:2010 approx.

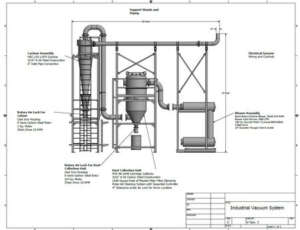

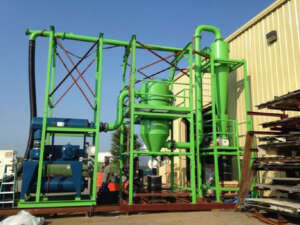

- TYPE:Industrial Truck / Rail Vacuum Unloading System. Pneumatic materials conveying system
- MODEL:Pneumatic
- MAT'LS CONSTRN:CS
- CONNECTIONS-INLET:6" tbc
- CONNECTIONS-DISCH:6" tbc

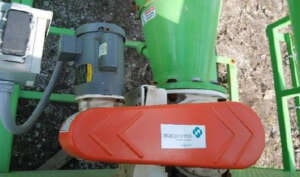

- AIR BLOWER:Roots 682RAM PD Blower. 1382 scfm @ 10.1" Hg.
- DRIVEN BY:100HP
- DRIVEN VIA:Belts
- PRIOR SVC:Vacuum unloading 8mm dia. X 8 mm long and 10mm round ceramic pellets, Railcars & trucks. Project was cancelled, very low hours.
- COMMENTS:Cyclone,32"dia x 14'oah, mfd Heumann Environmental mdl.120-1.875, 3/16", A36 CS, w/outlet MAC RAM10 Rotary Airlock, 10" CS.nDust Collector, 1648SF, mfd MAC PVR-48-1648, w/pleated cellulose fiber filter elements, Cartridge, requires pulse air 30 scfm @
- SHIPPING SIZE-W X H X L:8'W X 8'H X 45'L
- APPROX. WEIGHT-LBS:20000#
- QUANTITY:2
