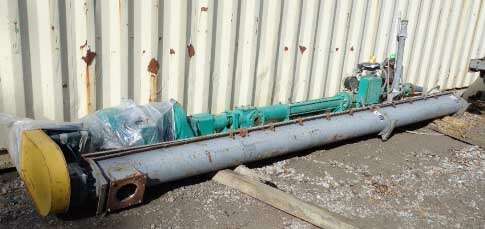

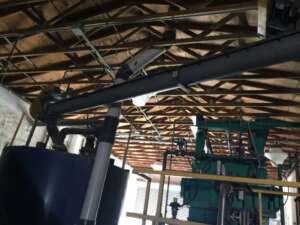

1272034 - CONVEYOR, SCREW, 12'' X 20’, CS, 1-SCREW, CS TROUGH, HORIZONTAL [1]

  • MFD.BY:LinkBelt [tbc]
  • DATE MFD:1995 approx
  • TYPE:Screw auger.
  • ENCLOSURE:Cylindrical
  • CONFIGURATION:Horizontal
  • NUMBER SCREWS:1
  • SIZE-DIAMETER:12"
  • SIZE-LENGTH:20'
  • FLITES-PITCH:12"
  • MAT'L. CONSTRN-SCREW(S):CS
  • MAT'L. CONSTRN-TOP COVER:CS
  • CONNECTIONS-INLET:12", flanged.
  • CONNECTIONS-DISCH:12" Sq, flanged.
  • DRIVEN BY:1-2HP motor, 3/60/230-460V. TEFC [tbc]
  • DRIVEN VIA:Link Belt shaft mounted reducer
  • R.P.M.:64 approx.
  • PRIOR SVC.:Perlite powder
  • COMMENTS:Conveyor shaft is supported by two 3"dia. roller bearings, outboard, one at each end. Shaft is sealed by a lip seal at tail end, lip & packed seal at head end. Inside the trough the shaft is approx 3"dia, the conveyor blades approx 3/16" thick material.[t
  • SHIPPING SIZE-W X H X L:2'W X 2'H X 22'L
  • APPROX. WEIGHT-LBS:700#
  • QUANTITY:1
