TYPE:General: Rectangular or circular designed basin/enclosure with a vertically stacked series of inclined horizontal slats/baffles, or honeycomb grill, arranged around the sides. Hot process water, which needs cooling, is pumped over the slats, creating a ca
MODEL :NC8413WAN4GGF
STYLE :Updraft. Crossflow. Open Loop. 1 Cell
CAPACITY-TONS:1062 Tons nominal
CAPACITY-GPM:3065 GPM approx.. 10" connections. 20" pan bottom outlet
TEMP.(H2O)-IN:85Deg F
TEMP.(H2O)-OUT:75Deg F Wet Bulb 67 Deg F
FAN(S):1 @ 11'Dia.
MATLS.CONSTRN-UPPER:Galvanized cs sides, both bottom & top water basins, SS.[TBC] w/PVC honeycomb/web vents
MATLS.CONSTRN-PAN:SS
PRIOR SERVICE:Chilled water, refinery. Unused or little used.

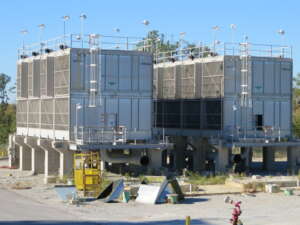

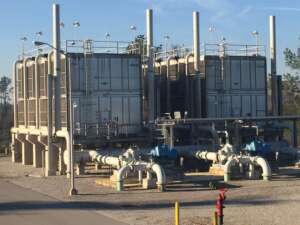

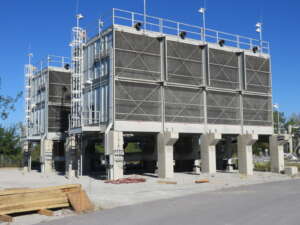

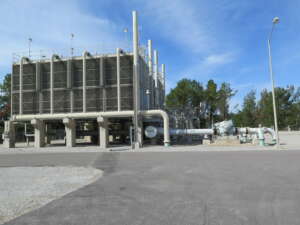

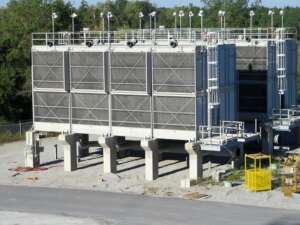

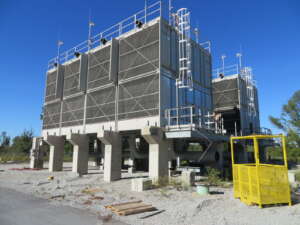

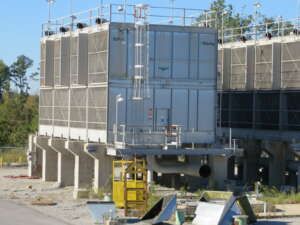

COMMENTS:2 banks of 4 modular cells, each bank with single Union pump, 12200GPM @ 154TDH, 800HP, per 4 cell bank. plus a spare pump, 3 pumps total. Adjustable pitch fan blades. Basin electric heater. Caged ladder at each end for bank of 4 cells, top handrail. Each
