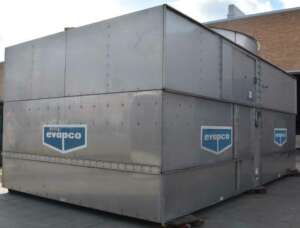

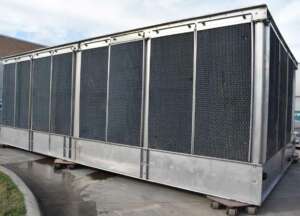

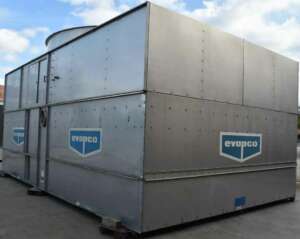

TYPE:General: Rectangular designed basin/enclosure with a vertically stacked series of inclined horizontal slats/baffles, or honeycomb grill, arranged around the sides. Hot process water, which needs cooling, is pumped over the slats, creating a cascading acti
MODEL :USS 144-0824
STYLE :Induced draft cross-flow. Open loop
CAPACITY-TONS:951 Tons nominal
CAPACITY-GPM:2700 approx.
TEMP.(H2O)-IN:95 deg F
TEMP.(H2O)-OUT:85 deg F 78Deg F Wet Bulb

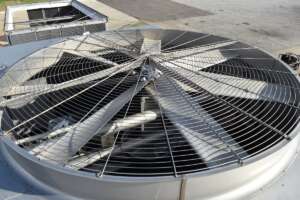

FAN(S):1 @ 7 blade, adjustable pitch. Top mounted. Super low sound type.
AIRFLOW-CFM:208500
MATLS.CONSTRN-UPPER:304SS
MATLS.CONSTRN-PAN:304SS
PRIOR SERVICE:Chilled Water.
COMMENTS:Ships in 2 sections. Assembled 18'5-5/8" oah. Lower section 8'4" high, Wt.5840# , Upper section 10'2"high, Wt.12210#. Brass float valve controls make up water.
SHIPPING SIZE-W X H X L:13'11"W X 10'9''H X 23'9''L
