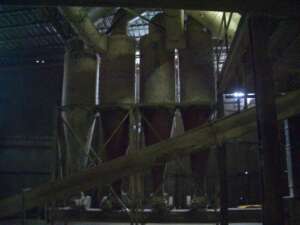

MFD.BY: TBD DATE MFD: 1960's TYPE: Left and right hand cyclone separator. MAT'LS CONSTRN: CS THICKNESS: 18 ga. Approx. SIZE-DIA: 42” OD SIZE-LENGTH: 8ft s-s plus 10ft cone bottom. O/all 20ft” Long approx. TOP HEAD TYPE: Flat SUPPORTED BY: Structural steel framework. CAPACITY-VOLUME: 2-10000 cfm approx. CONN'S-AIR OUT: Top center nozzle, air outlet, 15” OD approx. CONN'S-SOLIDS OUT: Cone center bottom nozzle, solids discharge, 10” dia. Approx with rotary airlock. PRIOR SERVICE: Milled Rice flour dust collection in Rice mill grinding area. COMMENTS: Low pressure. 2-pairs, each pair mounted in a frame, each pair was connected to a 50HP Chicago Blower Mdl.23LS, 10400CFM @ 20''SP. approx., available extra, also some ductwork. SHIPPING SIZE-W X H X L: 8'W X 4”H X 24'L APPROX. WEIGHT-LBS: 2000# QUANTITY: 4
