- MFD.BY:List, Acton, MA [Kraus Maffei]
- DATE MFD:1985 approx.

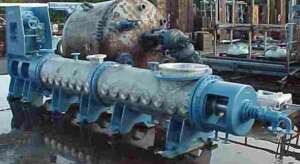

- TYPE:Discotherm B Continuous Processor. High viscosity, pasty, solid products. Heated shaft. Continuous vacuum paddle dryer.
- MODEL:DTB630C
- SIZE:24"dia. X 12'6"long vessel approx. (600 X 3800)
- MAT'L.CONSTRN:316SS
- HEAT SOURCE:Steam or hot oil jacketed. 304SS jkt rated 105#[7bar] @ 50°C. Vessel rated FV/90#[6bar] @ 50°C.
- DRIVEN BY:40HP/25KW. 3/50/1450RPM approx. main drive
- DRIVEN VIA:Hydraulic motor
- COMMENTS:154sq.ft., 14.3 Sq.M heat transfer area. 22.2 cu.ft. capacity. Continuous vac. Dryer/cooler. 18"dia removable cored rotor. Packing glands on shaft. 9" long shaft scraper blades. 17 fixed anvil/lump breakers on inside shell wall. Connections: Top- 24"[2],
- SHIPPING SIZE-W X H X L:4'W X 7'H X 17'L
- APPROX. WEIGHT-LBS:10000#
- QUANTITY:1
