1271291 - DRYER, FLUID BED, 12SF, 48''DIA X 3', SS, GAS, STATIC BED [1]
MFD.BY:TBD
DATE MFD:1990 approx.
TYPE:Batch process. Wet powdered solids product is fed into the lower section of a vertical chamber onto a perforafet deck/screen where it is fluidized by an upward flowing hot air stream. The air is discharged at the chamber top via Cyclone with dried powders

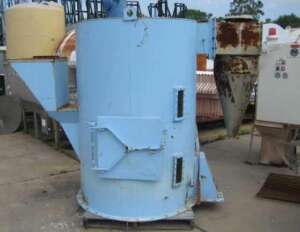

SIZE:48" dia x 9ft high vertical chamber with top side mounted cyclone
SCREEN AREA:12SF approx.

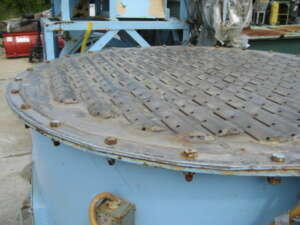

SCREEN TYPE:Perforated, stationary
MAT'L. CONSTRN-SCREEN:SS
MAT'L. CONSTRN-TOP:CS
MAT'L. CONSTRN-PLENUM:CS

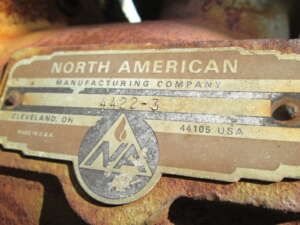

HEATING TYPE:Gas or Propane fired burner. N.American Burner Mdl 4422-3 LoNox nozzle mix, w/controls. 1.5'' air pipe, 3600SCFH combustion air, 16osi pressure drop across burner, 360,000btu/hr, 2ft flame, up to 2000Deg F. Digital readout, Barber Coleman #560 touchpad c
BLOWER:3hp combustion blower.
CONNECTIONS-AIR:10". 15HP 2000CFM @ 28"H2O Process air blower blows into combustion
CAPACITY:200# batch approx.
PRIOR SVC:Ceramic particles

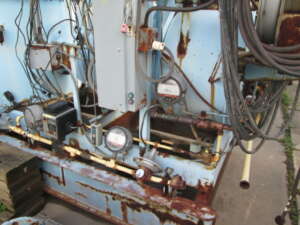

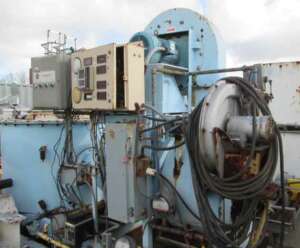

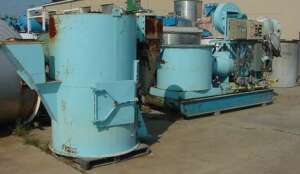

COMMENTS:Packaged with control panels, burner and gas train, skid mounted.. Burner outlet duct feeds into side of drying chamber in lower plenum. Gravity feed chute. Cyclone collector at discharge. Accesss door and glass inspection ports.
