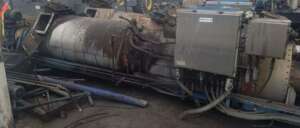

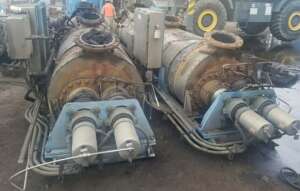

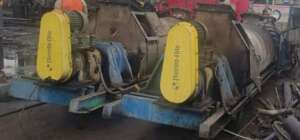

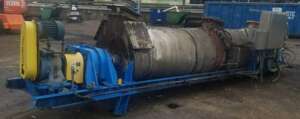

TYPE:Heated Screw Processor. Indirect heat/transfer. Granular or free flowing Product conveyed through an enclosed trough via electrically heated screws and trough jacket. Multiple screw unit has single input and screws driven via timing gears.
MODEL:ESD14-15-VAR Style A TWIN. 'Electric-Scru' Dryer.
NUMBER SCREW(S):2

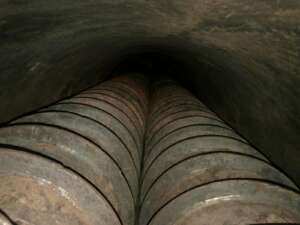

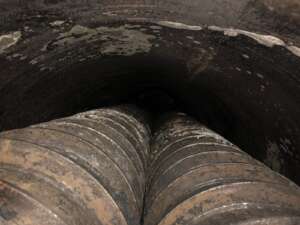

DIAMETER-SCREW(S):14.25"OD over Flite. Variable Pitch, widest at inlet, decreases along length toward discharge
LENGTH-SCREW(S):15'
MAT'L CONSTRN-SCREW(S):316SS
MAT'L CONSTRN-TROUGH:316SS. Shell is in 2 sections connected for expansion by Fabric Expansion Joint in middle. Discharge end floating frame on Bronze support surfce to permit expansion.
PRESSURE-TROUGH:Atm#. Product Inlet flange 16"W x 12"L, Discharge 17"W x 10"L. Vapor outlet 12" 150# flange [2] midshell and over discharge. Inspection covers either side of inlet, 10" Sq. [2]. Flites 3/8" rotor clearance in trough.
PRESSURE-JACKET:NA
FLUID MEDIUM:Electric. Elements on rotors total 100KW. 4 zones around drying chamber, Elements 12.5KW ea. 150KW total. Rated to 1200Deg F. approx.
RPM-SCREW(S):1-10RPM. Rotors-Shaft end rider seals with 1/4" purge gas connections. Fixed Tail end assembly with Dodge solid lube 4-15/16" Graphite sleeve bearings, Dual drive end Rexnord Spherical Roller bearings
