- MFD.BY:Therma-Flite, Benicia, CA
- DATE MFD:2008

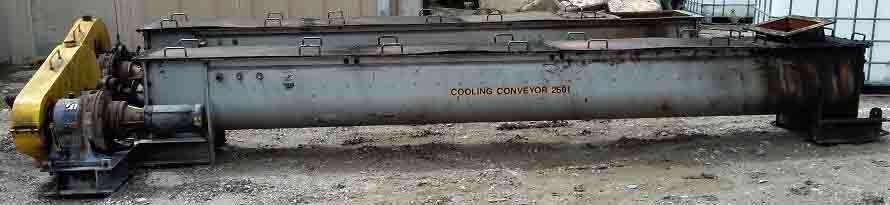

- TYPE:Holoflite shaft Dryer/ Cooler
- MODEL:SC16-16-6 Style A
- NUMBER SCREW(S):1
- DIAMETER-SCREW(S):16"
- LENGTH-SCREW(S):16'
- MAT'L CONSTRN-SCREW(S):CS
- MAT'L CONSTRN-TROUGH:CS
- MAT'L CONSTRN-JACKET:CS
- PRESSURE-SCREW(S):75 psig MAWP @ -20/650Deg F, Hyd 97.5#
- PRESSURE-JACKET:65 psig MAWP @ -20/650Deg F, Hyd 84.5#
- FLUID MEDIUM:Liquid heat or cool. Via Johnson 2"LH type RX Rotary Union, 1-1/4" in /out Water 15gpm @ 90Deg F to Jkt. 15gpm to Screw.
- DRIVEN BY:2HP 3/60/230-460v XP. C-face flanged to reducer.
- DRIVEN VIA:Gearmotor via chain to drive sprocket, 3:1 red., Sumitomo Mdl CHHJ-6180DBY-319-145TC
- RPM-SCREW(S):0.89-2.67RPM.
- PRIOR SVC:Cooling dried cake, 1336PPH, 800Deg F in 120 Deg F out.
- COMMENTS:Rotor shaft is hollow, 8-5/8"OD, Flites are single wall, 16"OD. 90SF area approx, 6" pitch. 4-piece flat top cover. Stuffing box shaft end seals; Tail end 3-7/6"ID w/5 @ 3/8"sq.John Crane style G58 flexible graphite packing rings and bronze bushing bearin
- SHIPPING SIZE-W X H X L:4'2''W X 2'6''H X 20'L
- APPROX. WEIGHT-LBS:5900#
