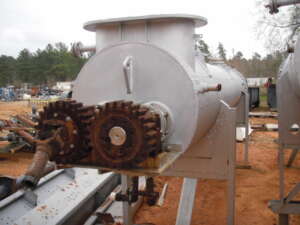

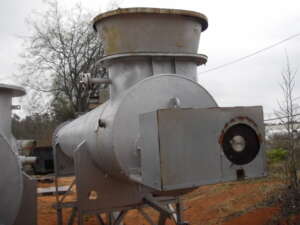

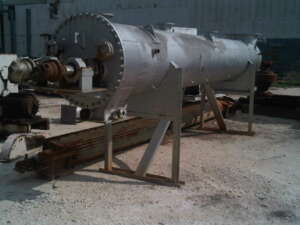

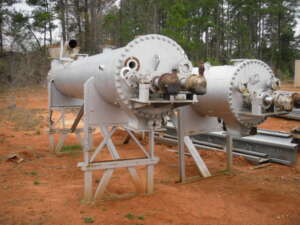

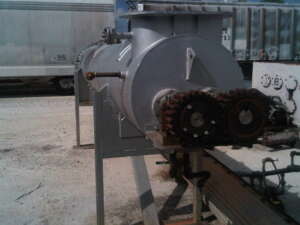

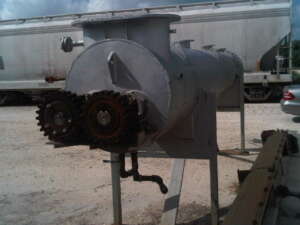

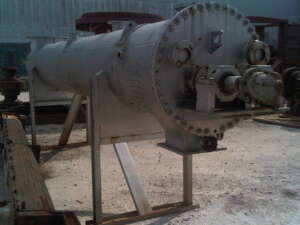

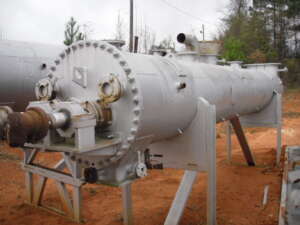

TYPE:Holoflite processor. Hollow flighted screw conveys powdered product continuously the length of the trough in which the screws rotate. Heating or cooling fluid medium circulated through the flights, via rotary joints, indirectly heat or cool the product a
MODEL:D1620
NUMBER SCREW(S):2
DIAMETER-SCREW(S):16''
LENGTH-SCREW(S):20’
MAT'L CONSTRN-SCREW(S):316SS
MAT'L CONSTRN-TROUGH:316SS
MAT'L CONSTRN-JACKET:CS

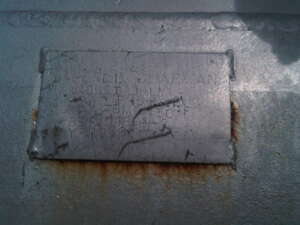

PRESSURE-SCREW(S):220# @ 395°F, ASME, National Board. [TBC]
PRESSURE-JACKET:15# @ 250°F, ASME, National Board.
FLUID MEDIUM:Steam. Available spare set of Liquid screws, Hot Oil or Water to heat or cool.
DRIVEN BY:5HP approx.
DRIVEN VIA:Gearbox
PRIOR SVC:Capacity up to approx.4-5000PPH dependent on RPM, product type, moisture content/ evaporation rate/temp.

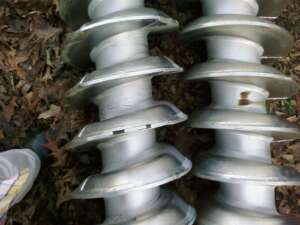

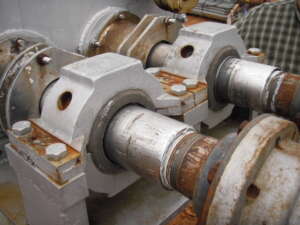

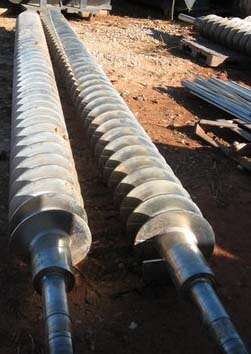

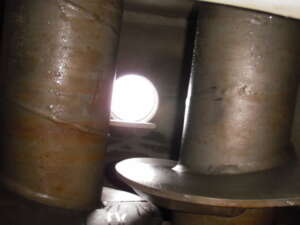

COMMENTS:Body is one piece circular w/ jkt covering lower 60% approx. Shafts, flights and all contact parts are stainless steel. 6 spare screws available. Screws approx 117SF area each. Jacket approx 80SF, total 314SF. Barco rotary joints, 3" X 3" X 1-1/2". Mdl.
