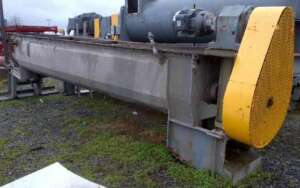

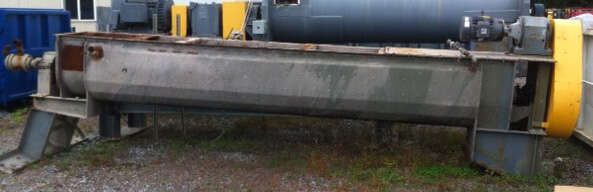

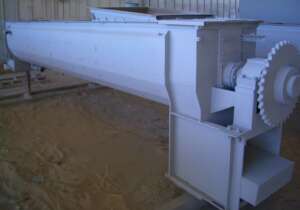

1269788 - DRYER, HOLOFLITE, 24'' X 16', 1-SCREW, CS, DENVER, S2416-6, HOT OIL [1]

  • MFD.BY:Denver
  • DATE MFD:1980

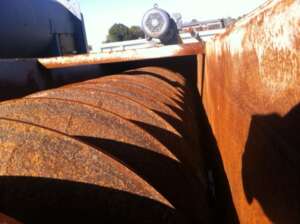

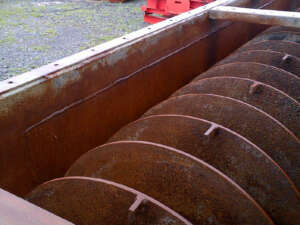

  • TYPE:Holoflite processor. Single Rotary Screw type. Indirect heat or cool. Originally designed for cooling w/ liquid medium. Indirect heat/cooling transfer. Granular or free flowing Product conveyed through an enclosed trough via screw[s] with hollow flites, w
  • MODEL:S-2416-6
  • NUMBER SCREW(S):1
  • DIAMETER-SCREW(S):24"
  • LENGTH-SCREW(S):16'
  • MAT'L CONSTRN-SCREW(S):CS
  • MAT'L CONSTRN-TROUGH:CS
  • MAT'L CONSTRN-JACKET:CS
  • PRESSURE-SCREW(S):150# @ 650°F Hyd. 225#. ASME. N.Bd.
  • PRESSURE-TROUGH:Atm#/Low positive or negative pressure.
  • PRESSURE-JACKET:30# @ 650°F Hyd. 45#. ASME. N.Bd.
  • FLUID MEDIUM:Hot Oil

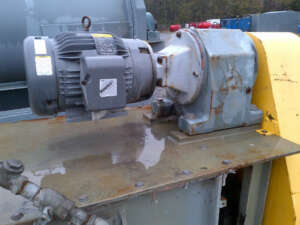

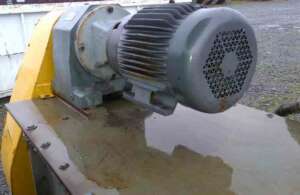

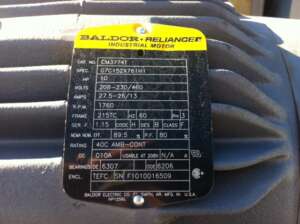

  • DRIVEN BY:10HP, 3/60/460V, TEFC, Fr 215TC [Originally fitted with 2HP, 3/60/460V]

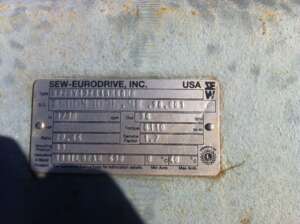

  • DRIVEN VIA:SEW Eurodrive, inline fixed ratio gearbox, 1760 rpm in/ 51 rpm out to 2.3:1 reduction chain sprocket. [Originally fitted with Falk type 1120 PC4, concentric reducer, 985.3:1 ratio.]
  • RPM-SCREW(S):0-24 rpm, VFD controlled [Originally 0-1.3 approx.]
  • PRIOR SVC:Originally cooled Sulfonated Limestone. 3275PPH / 47SCFH @ 70#/Cu Ft, -1/2" material, from 1550Deg F to 275Deg F with 70GPM 80Deg F water @ 50psi in screws. Variable throughput will affect residence time and Delta T. Also heated or cooled Calcium Carbona

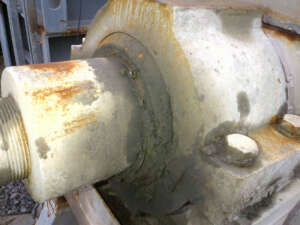

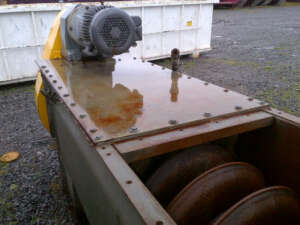

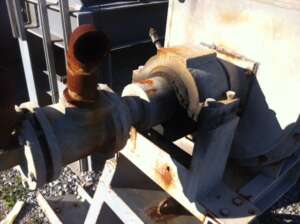

  • COMMENTS:Includes 3" Johnson rotary joint. No top cover except drive mount plate at last 4ft of discharge end, mounted on trough top flange with supprts to frame. Discharge approx. 24"wide x 21"long, flanged underneath at drive end. Heat load approx. 974,285 Btu/H
  • SHIPPING SIZE-W X H X L:3'W X 2'H X 20'L
  • APPROX. WEIGHT-LBS:7000#
