1270617 - DRYER, HOLOFLITE, 24'' X 24', 2-SCREW, CS, DENVER, D2424-6GED, HOT OIL [1]
MFD.BY:Denver, Joy
DATE MFD:1985
TYPE:Holoflite Processor. Originally designed for heating or cooling w/ liquid medium. Indirect heat/cooling transfer. Granular or free flowing Product conveyed through an enclosed trough via screw[s] with hollow flites, with liquid medium pumped through screw
MODEL:D2424-6-GED
NUMBER SCREW(S):2
DIAMETER-SCREW(S):24"
LENGTH-SCREW(S):24'
MAT'L CONSTRN-SCREW(S):CS
MAT'L CONSTRN-TROUGH:CS
MAT'L CONSTRN-JACKET:CS
PRESSURE-SCREW(S):150# @ 650°F. MAWP. ASME N.BD.
PRESSURE-JACKET:30# @ 650°F. MAWP. ASME N.BD.
FLUID MEDIUM:Hot Oil
DRIVEN BY:5HP, 3/60/460v 1755 rpm, approx.
DRIVEN VIA:Reducer
RPM-SCREW(S):1-5RPM approx.

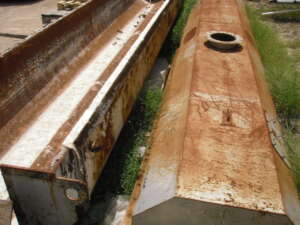

COMMENTS:Note: Trough and top vapor cover only [priced]. Trough 3'9" wide, 2'6" deep. Used screws, new bearings & timing gears, packing glands seal assemblies available, assembled extra $100,000
SHIPPING SIZE-W X H X L:4'6"'W X 4'H X 30'L approx.
